FlushNut™ fittings for crowded fluidic assemblies

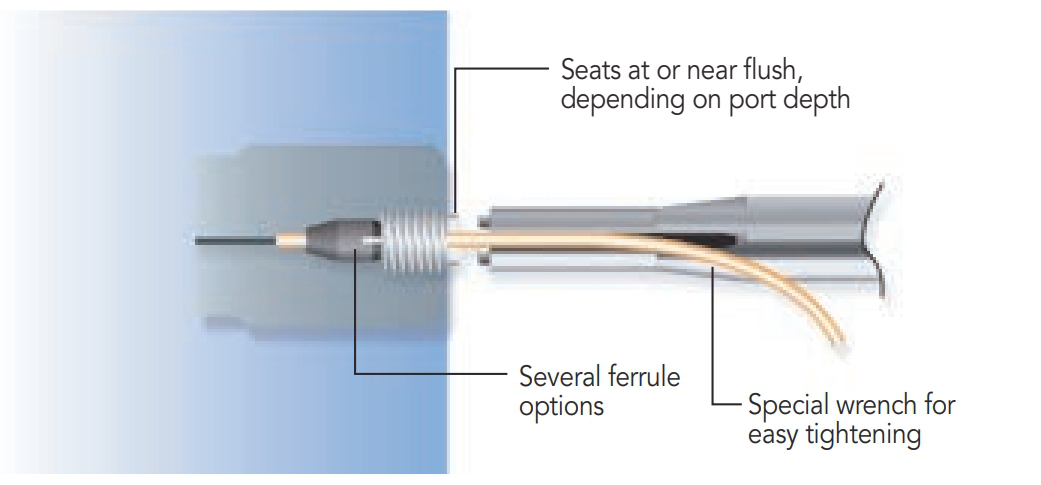

IDEX FlushNut™ Fittings are designed for those tight-space fluidic assemblies where nut heads often interfere with each other. When coupled with an appropriate ferrule and tightened into a receiving port, the slotted head of the FlushNut™ seats at or near flush with the top of the port. This feature allows FlushNut™ Fittings to reside in closer proximity to each other than any other option on the market. Thanks to their tiny format and high flexibility, the FlushNut™ Fittings are highly popular among instrument developers and manufacturers.

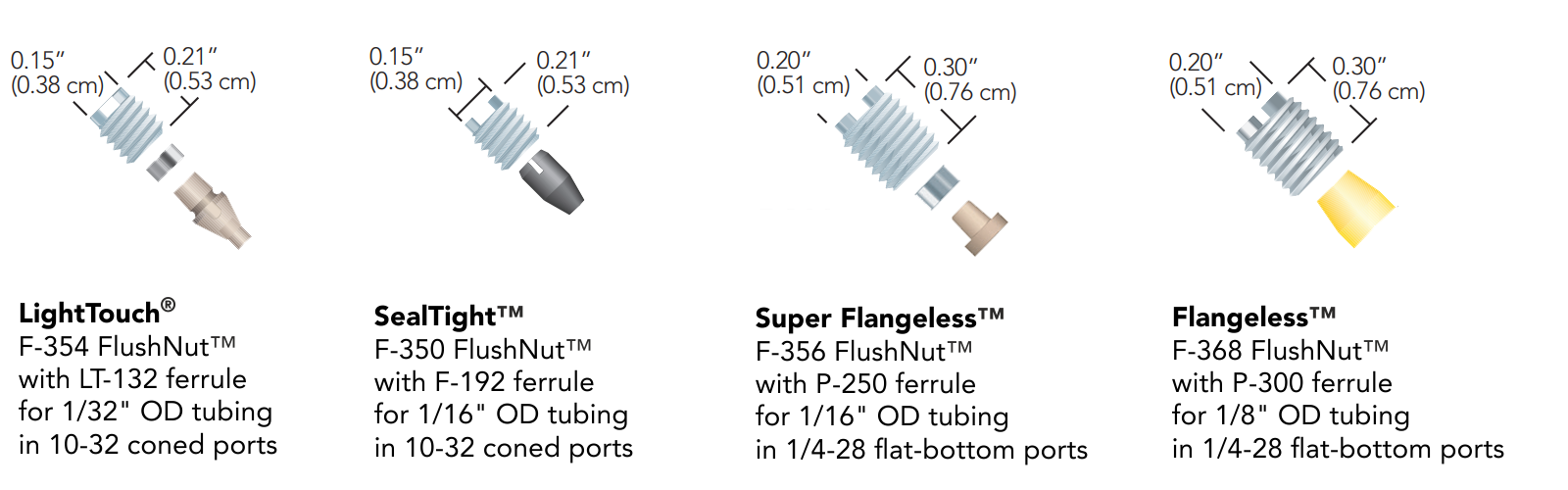

The FlushNut™ design feature is available with several of the IDEX fitting systems and their different ferrule constructions, including the LiteTouch®, SealTight™, Super Flangeless™, and Flangeless™ fitting systems. Ferrule options are thus available for both coned and flat-bottom port designs with 10-32 and 1/4-28 threads, and for tubing dimensions ranging from 1/32” up to 1/8” OD. This wide range of different options for the FlushNut™ Fittings, including which nut fits to what ferrules, are conveniently summarized in the table below.

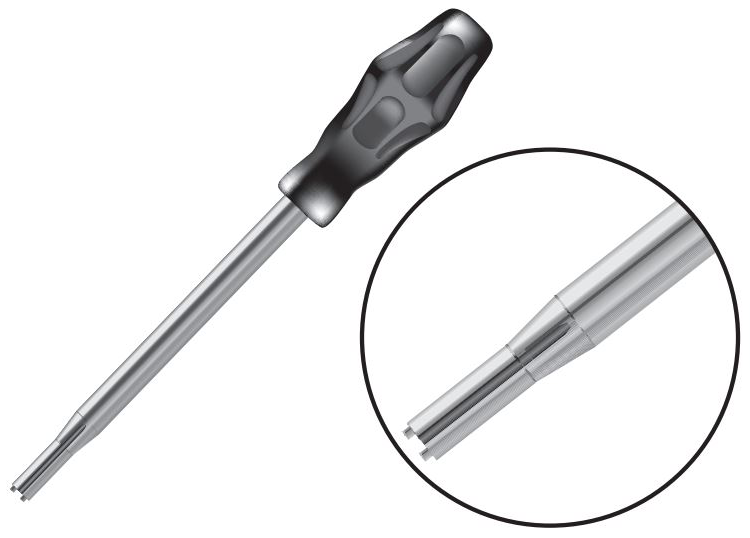

All FlushNut™ Fittings are manufactured from 316 stainless steel, except the P-321 Plug, which is made of PEEK polymer. Tighten or remove FlushNut™ Fittings with the specially designed FlushNut™ Wrenches, available in 10-32 or 1/4-28 versions (F-345 and F-346, respectively).
More details about different fitting systems and their various ferrule options are available at the product pages displaying fittings for coned and flat-bottom ports. Contact Biotech Fluidics to discuss your precision fluidic application and what components could be most suitable for that construction.
| FlushNut Part No.* | Threads/Port** | For Tubing OD | Ferrule Options |
|---|---|---|---|
| F-350 | 10-32 C | 1/16" | SealTight F-192 |
| F-354 | 10-32 C | 1/32" | LiteTouch LT-132 |
| F-354 | 10-32 C | 1/16" | LiteTouch LT-100 |
| F-354 | 10-32 C | 1/16" | LiteTouch SealTight LT-135 |
| F-364 | 1/4-28 C | 1/8" | LiteTouch LT-200 |
| F-364 | 1/4-28 FB | 1/8" | Super Flangeless P-350, P-352, P-359, P-360 |
| F-364 | 1/4-28 FB | 2.0 mm | Super Flangeless P-355 |
| F-356 | 1/4-28 FB | 1/32" | Super Flangeless P-248 |
| F-356 | 1/4-28 FB | 1/16" | Super Flangeless P-250, P-259, P-260 |
| F-358 | 1/4-28 FB | 1/16" | Flangeless P-200, P-200N, P-240 |
| F-368 | 1/4-28 FB | 1/8" | Flangeless P-300, P-300N, P-340 |
| F-368 | 1/4-28 FB | 1.8 mm | Flangeless P-342 |
| F-368 | 1/4-28 FB | 2.0 mm | Flangeless P-363R |
| F-368 | 1/4-28 FB | 2.5 mm | Flangeless P-353 |
| F-368 | 1/4-28 FB | 3.0 mm | Flangeless P-343 |
| P-321 | 1/4-28 FB | - | Plug - no ferrule required |
| F-345 | 10-32 | - | FlushNut Wrench for 10-32 Nuts |
| F-346 | 1/4-28 | - | FlushNut Wrench for 1/4-28 Nuts |
| **C = Coned, FB = Flat-Bottom | |||
