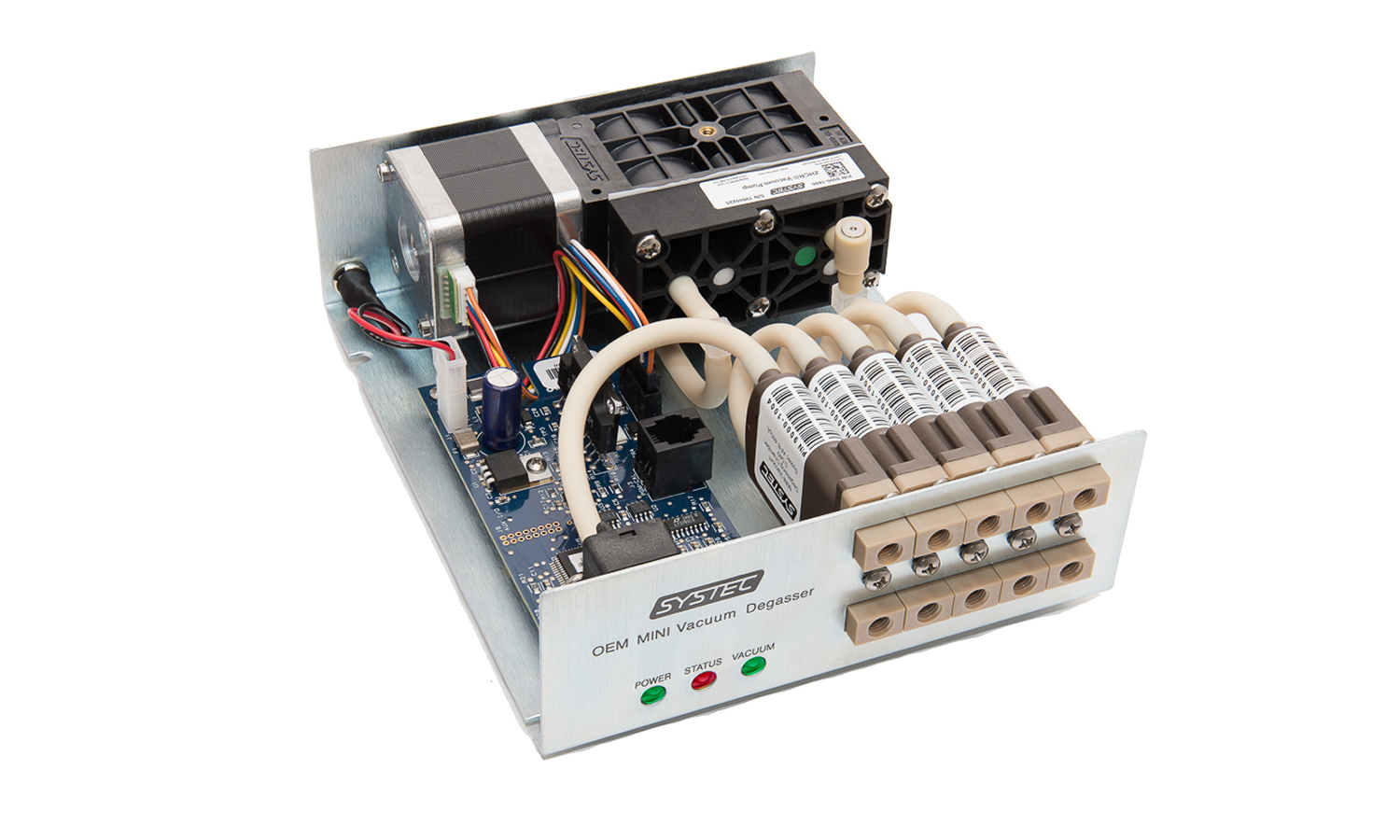

Our Sytec OEM MINI is a compact degassing system designed to remove dissolved gas and eliminate retention shifts and increase baseline stability with liquid chromatography. The open frame format is designed to be easily integrated into virtually any existing LC pump, degassing tray, or stand-alone degassing application. This module is available with a CE approved wall transformer and adapters for international power. IDEX SKU: 0001-6274
2 Channel OEM Mini Degassing Module, 480 µl Systec AF
Additional information
| Chemical Compatibility | See Solvent Compatibility Chart |
|---|---|
| Height (in) | 2.36 |
| Length (in) | 7.88 |
| Liquid Connections | 1/4-28 UNF, Expected Lifetime – >6 years (100 RPM 12 hours/day 365 days/year) |
| Max Flow Rate (mL/min) | 10 |
| Membrane Type | Systec AF |
| # of Channels | 2 |
| Power Requirements | 24 VDC @ 0.75 Amp max (< 5 Watts consumption average) |
| Recommended Flow Rate (ml/min) | 3 |
| Tubing ID (in) | 0.045 |
| Tubing ID (mm) | 1.143 |
| Vacuum Connection | Barb connector for 1/8â ID elastomeric Tubing |
| Vacuum Flow Path Materials | 303 Stainless Steel, Polypropylene, PTFE, EPDM Rubber |
| Wetted Materials | Systec AF, PEEK and Glass-filled PTFE |
| Width (in) | 6 |
