Threaded unions & adapters

Connecting a wide variety of port designs

blabla

  • English threaded adapters
  • Metric threaded adapters
  • National pipe threaded adapters
  • Low pressure unions
  • Low pressure bulkhead unions
  • Elbow connectors
  • Large bore unions

Port geometries

10-32 coned
10-32 flat-bottom
1/4-28 flat-bottom
M6x1 flat-bottom
5/16-24 flat-bottom
1/2-20 flat-bottom
1/8 NPT
1/4 NPT

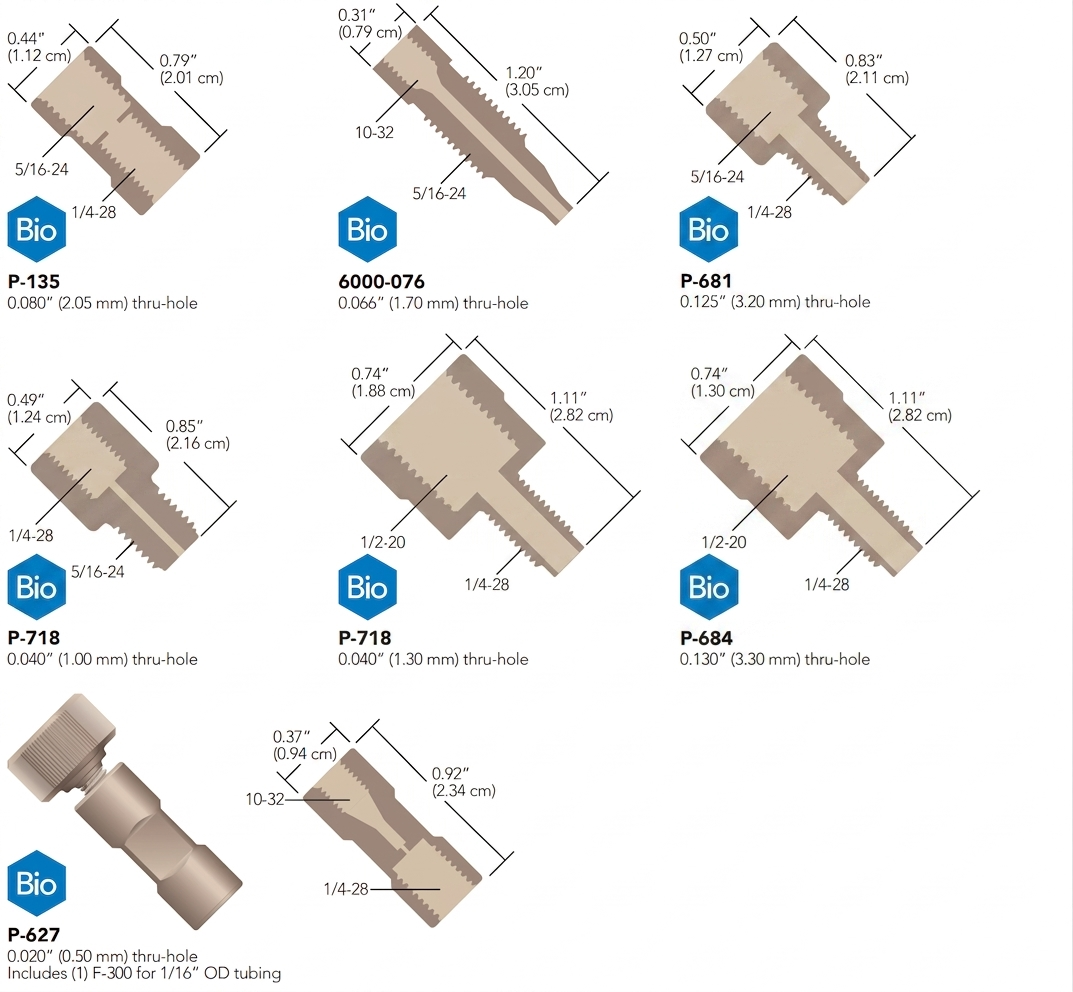

English threaded adapters

Prod. No.*Description**IncludesThru-holeSwept VolumePressure Rating
6000-076PEEK Adapter, 5/16-24 C, M to 10-32 C, F-0.066" (1.70 mm)49.8 µL3,000 psi (207 bar)
P-135PEEK Adapter, 5/16-24 FB, F to 1/4-28 F-0.080" (2.05 mm)4.1 µL1,000 psi (69 bar)
P-627PEEK Adapter, 10-32 C, F to 1/4-28 FB, FF-3000.020” (0.50 mm)0.30 µL1,000 psi (69 bar)
P-681PCTFE Adapter, 5/16-24 FB, F to 1/4-28 FB, M-0.125" (3.20 mm)96.6 µL1,000 psi (69 bar)
P-684PCTFE Adapter, 1/2-20 FB, F to 1/4-28 FB, M-0.130" (3.30 mm)121.7 µL250 psi (17 bar)
P-718PCTFE Adapter, 5/16-24 FB, M to 1/4-28 FB, F-0.040" (1.00 mm)10.3 µL1,000 psi (69 bar)
U-659PEEK Adapter, 5/16-24 FB, F to 1/2-20 FB, FU-655, U-650Tapered***42.0 µL250 psi (17 bar)
U-665PEEK Adapter, 1/2-20 FB, F to 1/4-28 FB, F U-655, U-6500.063” (1.60 mm)6.6 µL250 psi (17 bar)
P-652PEEK Adapter, 1/4-28 FB, F to 10-32 C, M-0.030” (0.75 mm)6.7 µL1,000 psi (69 bar)
P-654PEEK Adapter, 1/4-28 FB, F to 10-32 C, M, Extra Long-0.030” (0.75 mm)9.5 µL1,000 psi (69 bar)
P-669-01PEEK Adapter, 10-32 C, F to 1/4-28 FB, M-0.040” (1.00 mm)6.6 µL1,000 psi (69 bar)
P-671PTFE Adapter, 1/4-28 FB, F to 1/4-28 FB, M-0.040” (1.00 mm)8.0 µL1,000 psi (69 bar)
P-672PEEK Adapter, 1/4-28 FB, F to 10-32 FB, M-0.050” (1.25 mm)11.4 µL1,000 psi (69 bar)
**F = Female (internal) threads; M = Male (external) threads; XL = extra long; C = Coned; FB = Flat-Bottom
***Thru-hole tapers from 0.188” (4.80 mm) to 0.125” (3.20 mm)

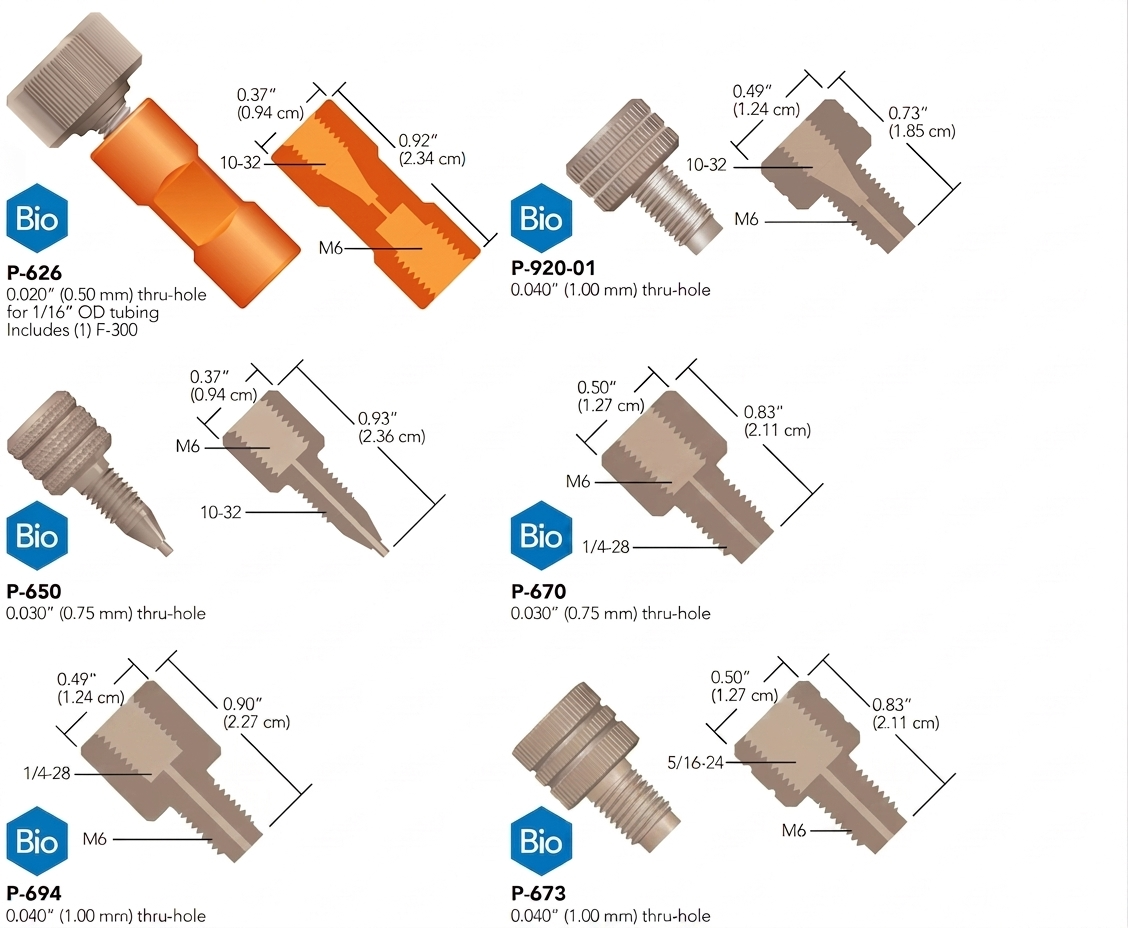

Metric threaded adapters

Prod. No.*Description**IncludesThru-holeSwept VolumePressure Rating
P-626PEEK Adapter, 10-32 C, F to M6 FB, FF-3000.020” (0.50 mm)0.3 µL1,000 psi (69 bar)
P-650PEEK Adapter, M6 FB, F to 10-32 C, M-0.030” (0.75 mm)6.7 µL1,000 psi (69 bar)
P-670PCTFE Adapter, M6 FB, F to 1/4-28 FB, M-0.030” (0.75 mm)2.6 µL1,000 psi (69 bar)
P-673PCTFE Adapter, 5/16-24 FB, F to M6 FB, M-0.040" (1.00 mm)9.9 µL1,000 psi (69 bar)
P-694PCTFE Adapter, 1/4-28 FB, F to M6 FB, M-0.040" (1.00 mm)11.3 µL1,000 psi (69 bar)
P-920-01PEEK Adapter, 10-32 C, F to M6 FB, M-0.040" (1.00 mm)8.0 µL1,000 psi (69 bar)
**F = Female (internal) threads; M = Male (external) threads; XL = extra long; C = Coned; FB = Flat-Bottom

National pipe threaded adapters

Prod. No.*Description**ColorTubingIncludesThru-holeSwept VolumePressure Rating
U-510PEEK 1/8” NPT, M to 1/4-28 FB, F AdapterRed1/8" ODP-308, P-300 0.062” (1.60 mm)17.3 µL500 psi (34 bar)
U-514PEEK 1/8” NPT, M to 5/16-24 FB, F AdapterNatural3/16” ODP-132, P-1330.125” (3.2 mm)70.4 µL500 psi (34 bar)
U-500PEEK 1/4” NPT, M to 1/4-28 FB, F AdapterRed1/8" ODP-308, P-3000.062” (1.60 mm)17.3 µL500 psi (34 bar)
U-504PEEK 1/4” NPT, M to 5/16-24 FB, F AdapterNatural3/16” ODP-132, P-1330.125” (3.2 mm)70.4 µL500 psi (34 bar)
**F = Female (internal) threads; M = Male (external) threads; XL = extra long; C = Coned; FB = Flat-Bottom

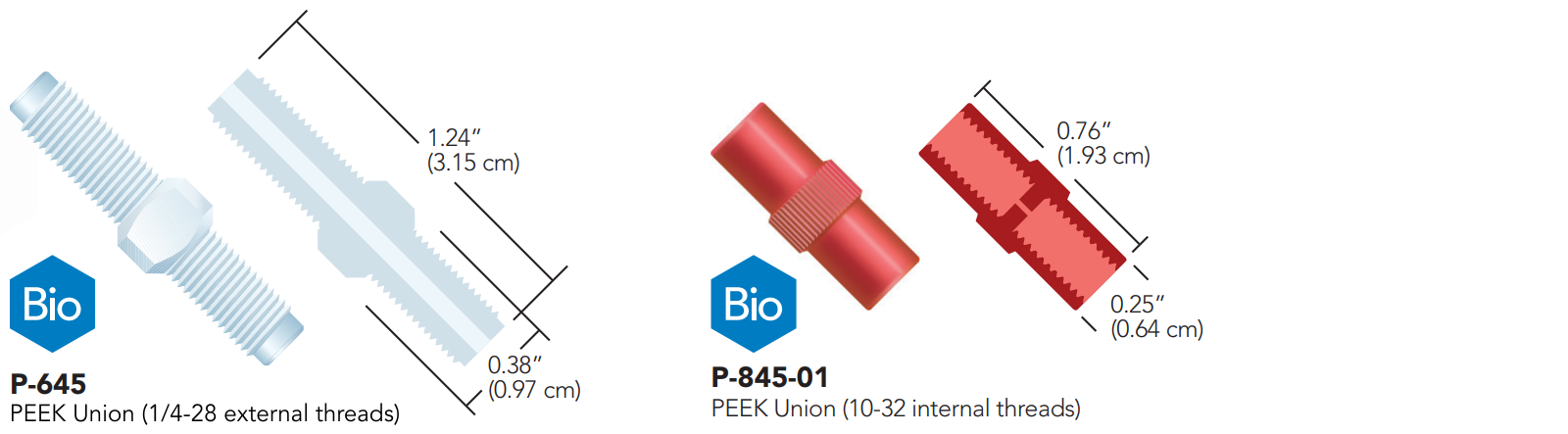

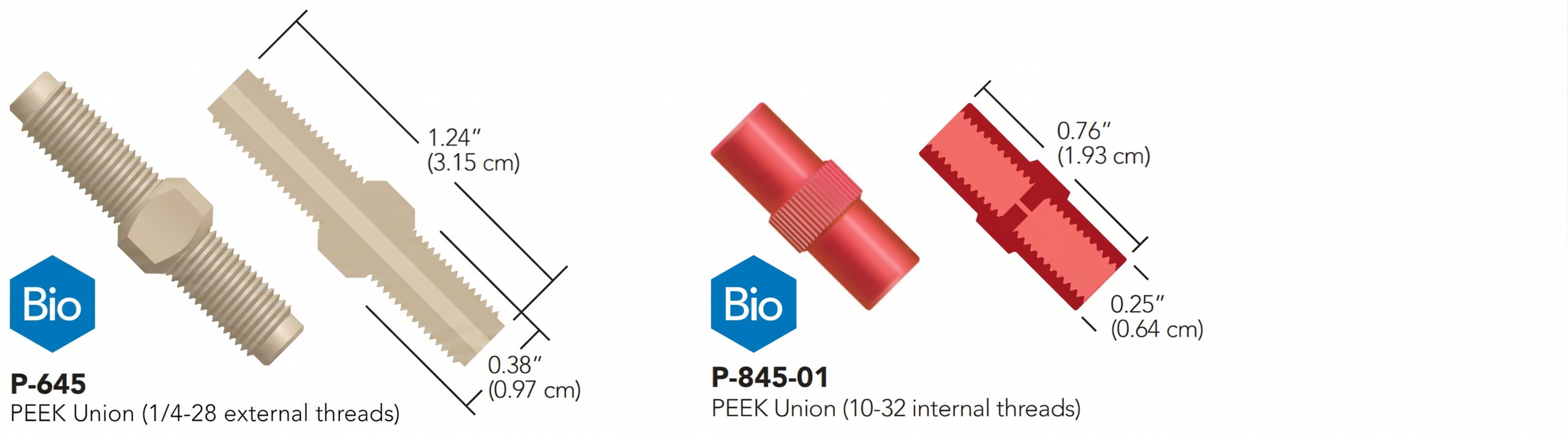

Low pressure unions

Low pressure bulkhead unions

Elbow connectors

Large bore unions
