Our NPT (National Pipe Thread) Adapter Assembly is specifically manufactured from PEEK making it durable and chemically resistant. It is optimally suited for low pressure applications. It has a tubing OD of 3/16″ and it’s thread configuration is 1/8″ NPT Male to 5/16-24 Flat-Bottom Female ports. It is natural color and comes with (1)OD x P-132 Fitting.

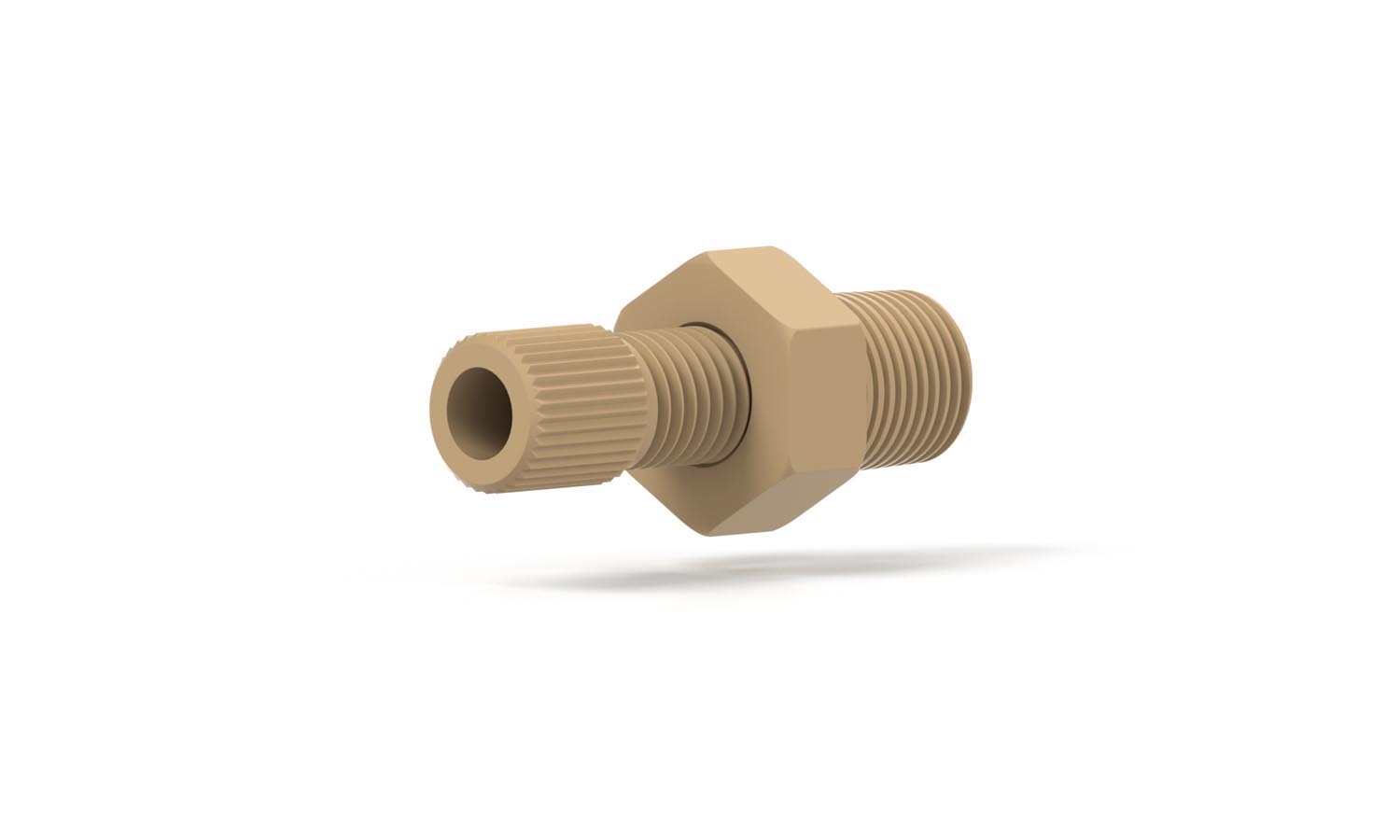

U-514, NPT Adapter Assembly PEEK 3/16″ 1/8 NPT Male x 5/16-24 Female
Additional information
| Color | Natural |
|---|---|
| For Tubing OD (in) | 3/16 |
| Material | PEEK |
| Pressure Rating Max (bar) | 34 |
| Pressure Rating Max (psi) | 500 |
| Swept Volume (nL) | N/A |
| Thread to Thread | 1/8 NPT Male to 5/16-28 Flat-Bottom Female |
| Thru hole (in) | 0.125 |
| Thru hole (mm) | 3.17 |
