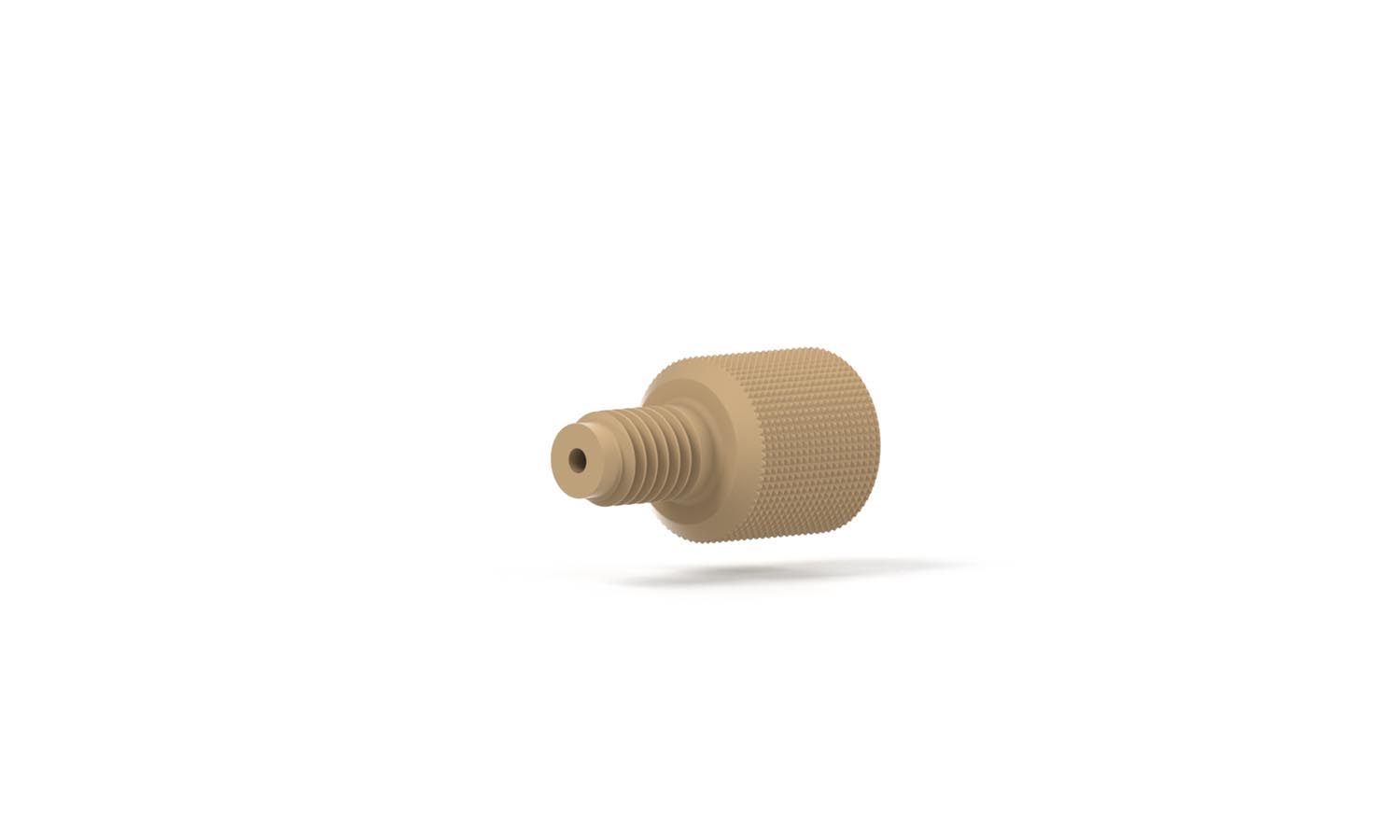

Our versatile English Threaded Adapter is used specifically to attach connectors with different threads. It is made from biocompatible PEEK giving it excellent chemical resistance. It has a Female 1/4-28 to Male 10-32 Flat-Bottom port configuration. It includes no fittings. Brochure
P-672, English Adapter 1/4-28 Female x 10-32 Male, Flat-Bottom PEEK
Additional information
| Material | PEEK |
|---|---|
| Pressure Rating Max (bar) | 69 |
| Pressure Rating Max (psi) | 1000 |
| Swept Volume (µL) | 11.4 |
| Thread Port Configuration Flat-Bottom | 1/4-28 to 10-32 |
| Thread to Thread | Female to Male |
| Thru hole (in) | 0.050 |
| Thru hole (mm) | 1.30 |
