Description

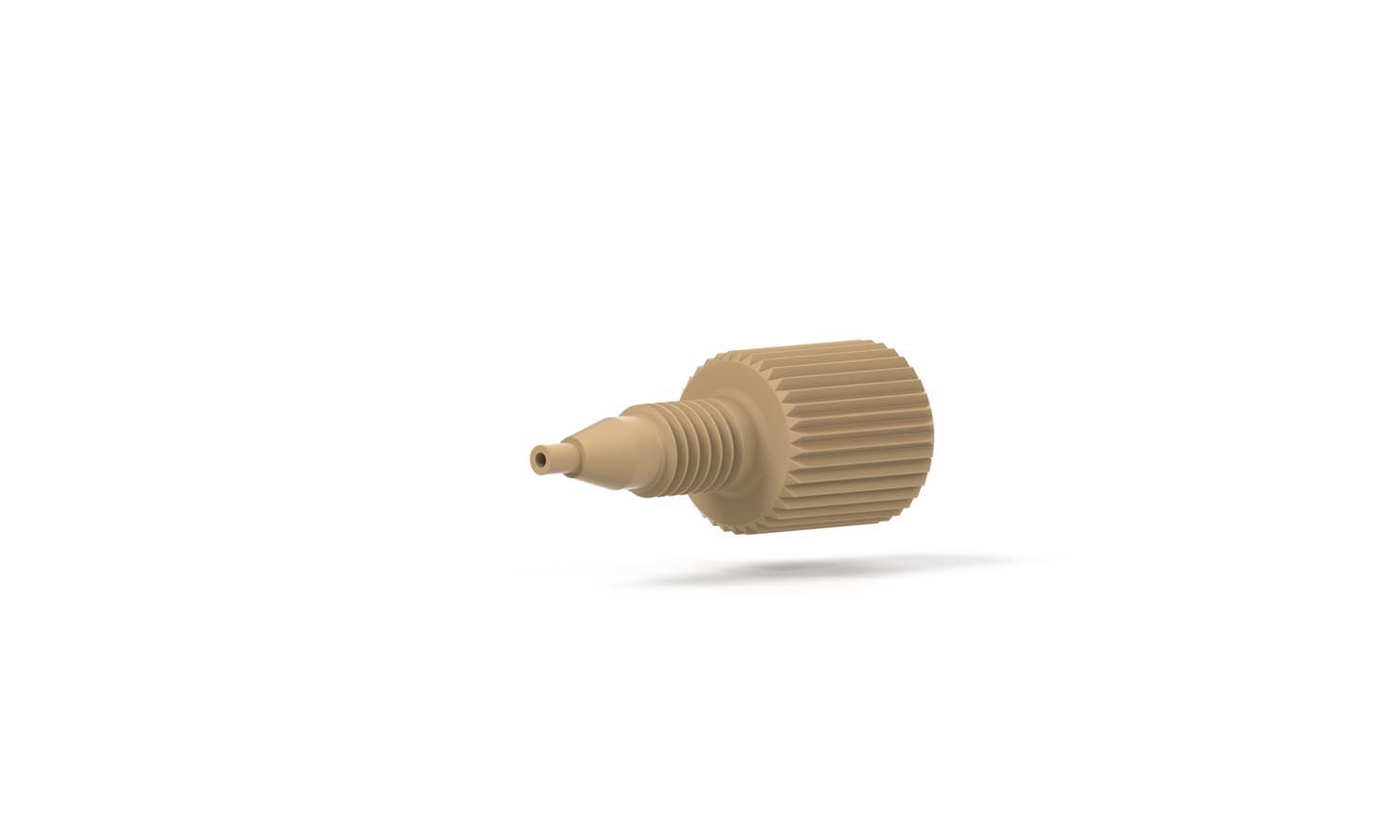

Our PEEK , Standard, English Threaded Adapter is ideal for bringing together connectors with different threads. The P-653 has a Female 1/4-28 Flat Bottom to Male 10-32 Coned port configuration. It includes no fittings. Brochure
P-652, Adapter – 1/4-28 x 10-32, PEEK
Additional information
| Material | PEEK |
|---|---|
| Pressure Rating Max (bar) | 69 |
| Pressure Rating Max (psi) | 1000 |
| Swept Volume (µL) | 6.7 |
| Thread Port Configuration Coned | 1/4-28 to 10-32 |
| Thread to Thread | Female to Male |
| Thru hole (in) | 0.030 |
| Thru hole (mm) | 0.75 |
