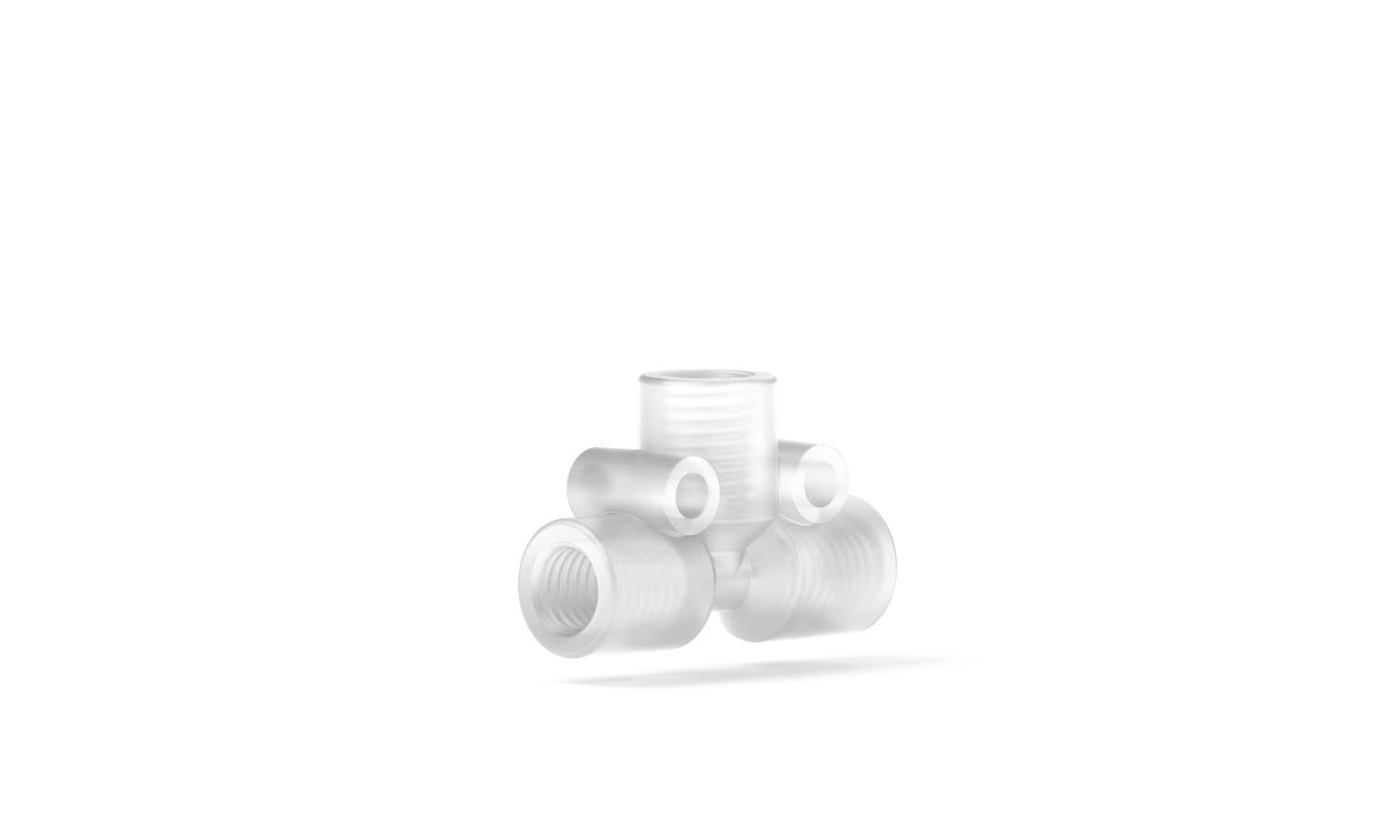

Tee Assembly Tefzel(r) (ETFE), for 1/16″ OD, .020 thru hole

SKU: P-632 Categories: Connectors, Low Pressure Multiport Connectors, Tees & Crosses

Description
Specifications

Description

Our Tefzel (ETFE) Low Pressure Tee Assembly can precisely handle a pressure rating 1000 psi (69 bar). It is designed with convenient mounting holes. This assembly is designed for 1/16″OD tubing. It comes complete with (3) P-245 Nuts and (3) P-200N Ferrules. Brochure

Additional information

For Tubing OD (in)	1/16
Material	Tefzel (EFTE)
Pressure Rating Max (bar)	69
Pressure Rating Max (psi)	1000
Swept Volume (µL)	2.9
Thread Port Configuration Flat-Bottom	1/4-28
Thru hole (in)	0.020
Thru hole (mm)	0.50
