Flanged fittings
Traditional fittings for fluoropolymer tubing
Flanged fittings were the traditional way of connecting fluoropolymer tubing into flat-bottom ports. Nowadays, Biotech Fluidics do recommend using more modern fitting designs for liquid flow paths in precision fluidic systems but anyway keep this product line to support maintenance of older constructions.
The drawback with Flanged fittings it that the tubing ends need to be melted into flat disks (in a process known as flanging) for the connections to seal properly. This process is slow and today more modern fitting designs such as the Super Flangeless™ and Flangeless™ have mostly replaced flanged fittings in fluidic system assemblies.
- For 1/16” & 1/8″ OD tubing connections into 1/4-28 or M6x1 flat-bottom ports
- Requires flanging of tubing ends to seal

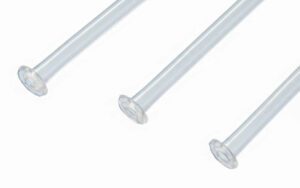

Examples of flanged tubing ends
Product details
| Part No.* | Description | Port | Head Style | Material | Includes |
|---|---|---|---|---|---|

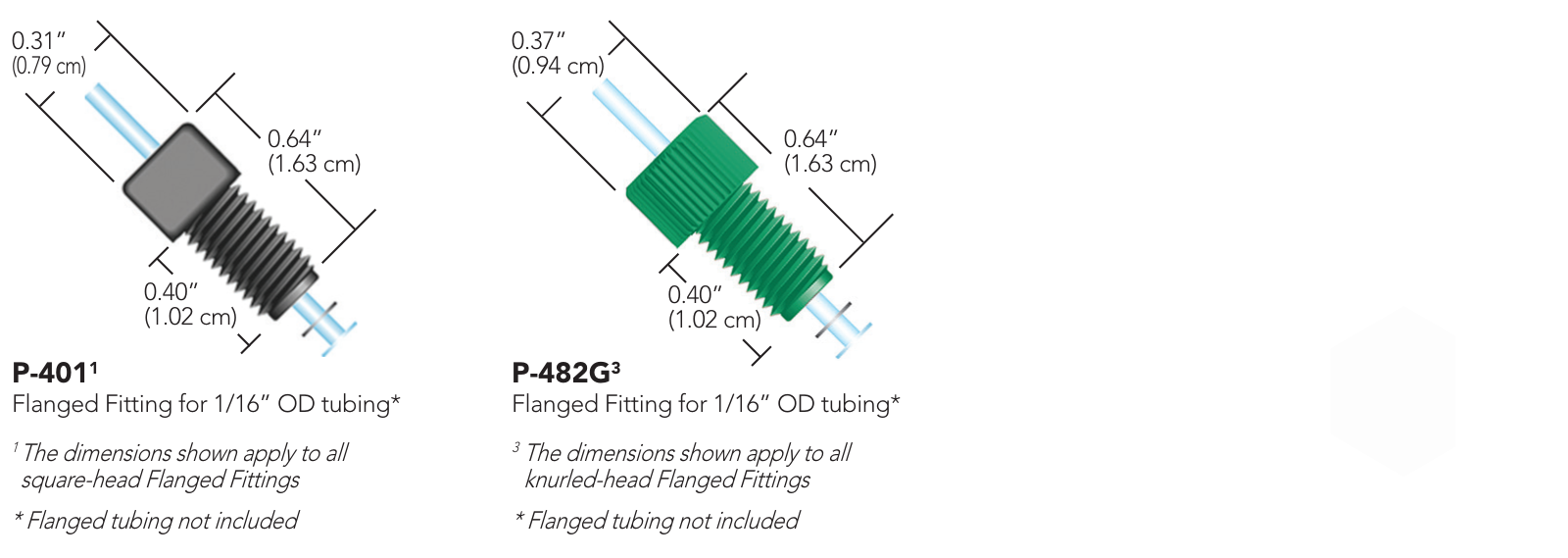

| P-401 | Flanged Fitting for 1/16” OD Tubing | 1/4-28 Flat-Bottom | 5/16” Square | Delrin Black/SST | P-407 |
| P-482B | Flanged Fitting for 1/16” OD Tubing | 1/4-28 Flat-Bottom | Standard Knurl | Delrin Blue/SST | P-407 |
| P-482BLK | Flanged Fitting for 1/16” OD Tubing | 1/4-28 Flat-Bottom | Standard Knurl | Delrin Black/SST | P-407 |
| P-482T | Flanged Fitting for 1/16” OD Tubing | 1/4-28 Flat-Bottom | Standard Knurl | ETFE Natural/SST | P-407 |
| P-501 | Flanged Fitting for 1/8” OD Tubing | 1/4-28 Flat-Bottom | 5/16” Square | Delrin Black/SST | P-507 |
| P-582B | Flanged Fitting for 1/8” OD Tubing | 1/4-28 Flat-Bottom | Standard Knurl | Delrin Blue/SST | P-507 |
| P-582T | Flanged Fitting for 1/8” OD Tubing | 1/4-28 Flat-Bottom | Standard Knurl | ETFE Natural/SST | P-507 |
| P-982BLK | Flanged Fitting for 1/16” OD Tubing | M6 Flat-Bottom | Standard Knurl | Delrin Black/SST | P-407 |
| P-1082BLK | Flanged Fitting for 1/8” OD Tubing | M6 Flat-Bottom | Standard Knurl | Delrin Black/SST | P-1087 |
| P-407 | Washer for 1/16” OD Tubing | 1/4-28 Flat-Bottom | - | SST | - |
| P-507 | Washer for 1/8” OD Tubing | 1/4-28 Flat-Bottom | - | SST | - |
| P-1087 | Washer for 1/8” OD Tubing | M6 Flat-Bottom | - | SST | - |
Resources
Consult the Periodic Table of Analytical Fittings for a quick overview, the Fittings 101 for guidance and learning, and the IDEX Catalogue for product details, or contact Biotech Fluidics for expert advice.
