Two-Piece Fingertight fittings
Economic polymeric fittings for coned ports
The two-piece polymeric fingertight fittings have separate exchangeable ferrules in different materials for different circumstances. This makes this an economical alternative for connection of 360 µm, 1/32”, or 1/16” OD tubing to 10-32 coned ports. Use a standard knurled head fitting for traditional fingertight applications or use a fitting with wings built into the head for extra tightening leverage. The two-piece fingertight fittings are pressure rated up to 6,000 psi (414 bar).
The M-215 Conductive Perfluoroelastomer Ferrule is designed for mass spectrometer electrospray applications. Unlike most graphite ferrules, the elastomeric properties of this ferrule let you use it through many tightening/retightening cycles. It also eliminates any possibility of graphite contamination in your system. Like graphite ferrules, you can apply voltage through a metallic port block or metallic nut, allowing voltage to translate to the flow path through the ferrule.

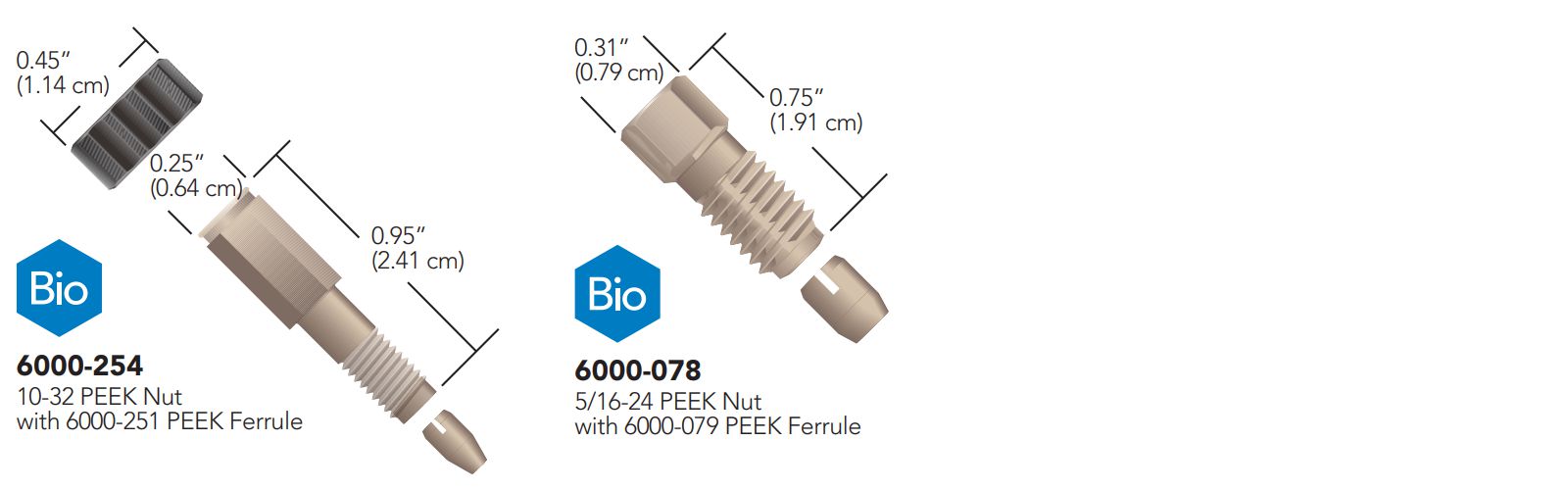

Included in this family are also the two-piece RheFlex fittings with ChromTRAC knobs, which have a slightly different ferrule design that can hold pressures up to 7,000 psi (483 bar) for 1/16” OD tubing, and up to 5,000 psi (345 bar) for 1/8” OD tubing.
- Designed to connect tubing to 10-32 coned ports
- Ferrules available for directly connecting 1/16”, 1/32”, or 360 µm OD tubing
- Economical, replace only the ferrule
Product details
| Part No.* | Description | Port | Pressure Rating | Head Style | Material | Includes |
|---|---|---|---|---|---|---|
| 6000-078 | RheFlex Fitting for 1/8” OD Tubing | 5/16-24 Coned | 5,000 psi (345 bar) | 5/16” Hex | PEEK Natural | 6000-079 |
| 6000-254 | RheFlex Fitting for 1/16” OD Tubing | 10-32 Coned | 7,000 psi (483 bar) | ChromTRAC knob** | PEEK Natural, w. black knob | 6000-251 |
| 6000-251 | RheFlex Ferrule for 1/16” OD Tubing | 10-32 Coned | 7,000 psi (483 bar) | - | PEEK Natural | - |
| F-300 | Fingertight Fitting for 1/16” OD Tubing | 10-32 Coned | 6,000 psi (414 bar) | Double Wing | PEEK Natural | F-142 |
| F-330 | Fingertight Fitting for 1/16” OD Tubing, Long | 10-32 Coned | 6,000 psi (414 bar) | Standard Knurl | PEEK Natural | F-142 |
| F-331 | Fingertight Fitting for 1/16” OD Tubing | 10-32 Coned | 6,000 psi (414 bar) | Standard Knurl | PEEK Natural | F-142 |
| F-113 | Ferrule for 1/32” OD Tubing | 10-32 Coned | 6,000 psi (414 bar) | - | PEEK Natural | - |
| F-142 | Ferrule for 1/16” OD Tubing | 10-32 Coned | 6,000 psi (414 bar) | - | PEEK Natural | - |
| F-142N | Ferrule for 1/16” OD Tubing | 10-32 Coned | 4,000 psi (276 bar) | - | ETFE Natural | - |
| M-215 | Conductive Ferrule for 360 µm OD tubing | 10-32 Coned | 1,500 psi (103 bar) | - | Conductive Perfluoroelastomer | - |
| **ChromTRAC knobs are also available in additional colours for larger quantities | ||||||
Resources
Consult the Periodic Table of Analytical Fittings for a quick overview, the Fittings 101 for guidance and learning, and the IDEX Catalogue for product details, or contact Biotech Fluidics for expert advice.
