Our Tefzel (ETFE) Low Pressure Cross Assembly can handle a pressure rating 500 psi(34 bar). It is designed with convenient mounting holes. The P-635 is designed for 1/8″OD tubing. This assembly comes complete with (4) P-345 Nuts and (4) P-200N Ferrules. Brochure

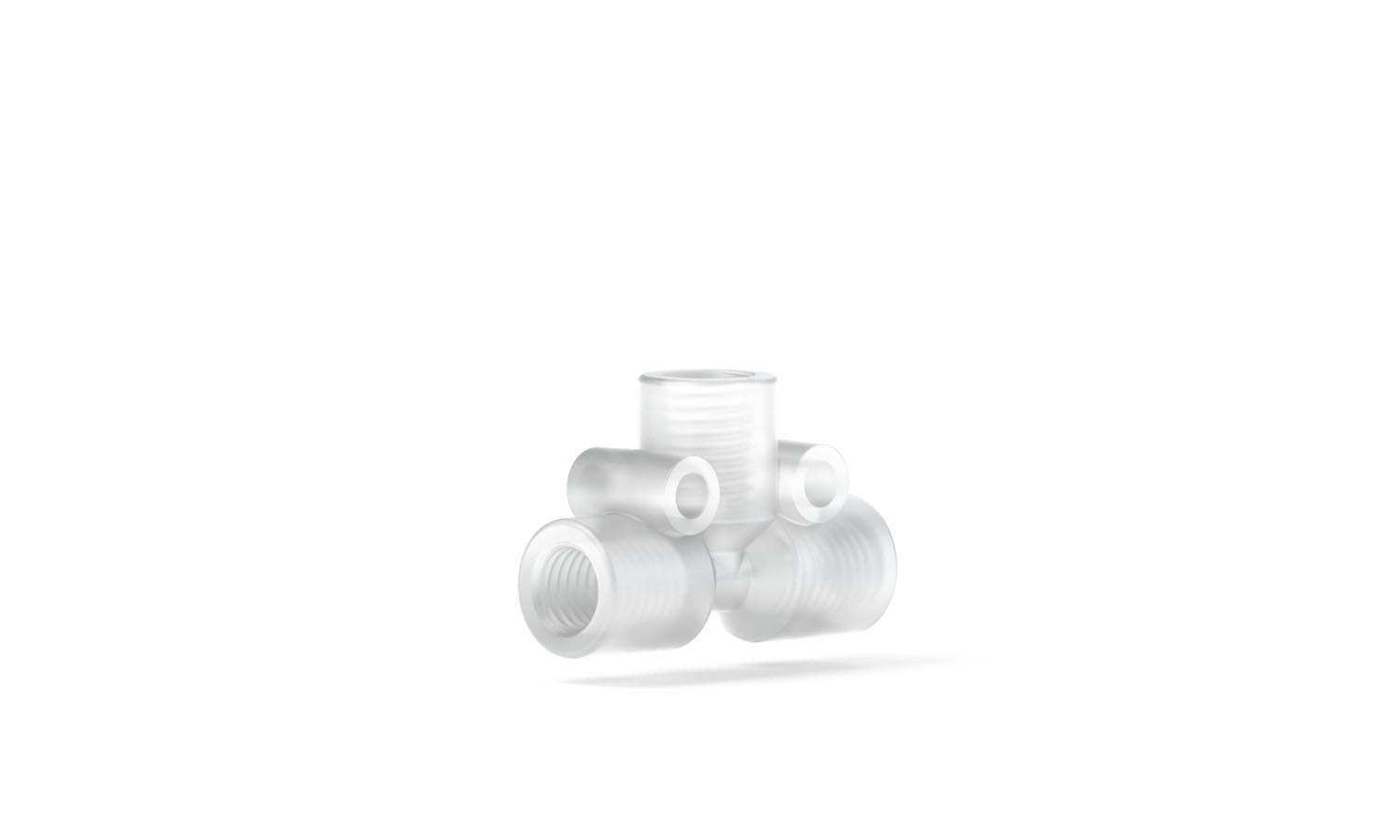

P-635, Cross Assembly ETFE for 1/8″ OD, .050 thru hole
Additional information
| For Tubing OD (in) | 1/8 |
|---|---|
| Material | Tefzel (EFTE) |
| Pressure Rating Max (bar) | 34 |
| Pressure Rating Max (psi) | 500 |
| Swept Volume (µL) | 22.8 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
| Thru hole (in) | 0.050 |
| Thru hole (mm) | 1.25 |
