Our Flangeless Fittings are designed to include both a nut and ferrule for your convenience. Flangeless fitting are dependable, easy to use and easy to replace. It has a 1/4-24 Flat-Bottom port configuration and is for 1/8″ OD tubing. Our Fitting System comes in natural color and includes the P-300 ferrule. Brochure

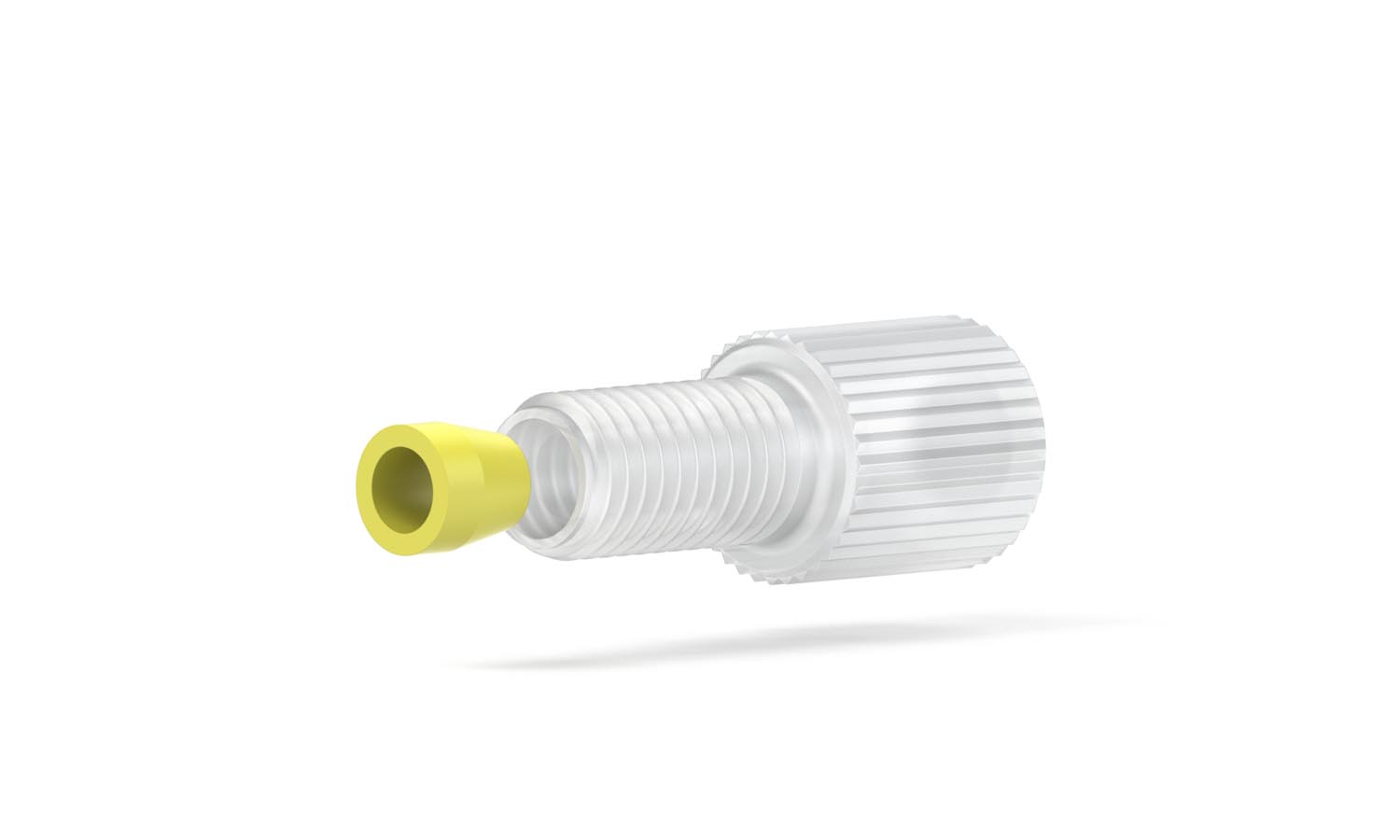

XP-320, Flangeless™ Fitting, Polypropylene,1/4-28 Flat-Bottom for 1/8″ OD, Natural
Additional information
| Color | Natural/Yellow |
|---|---|
| For Tubing OD (in) | 1/8 |
| Head Style | Standard Knurl |
| Material | Polypropylene/Tefzel (ETFE) |
| Pressure Rating Max (bar) | 34 |
| Pressure Rating Max (psi) | 500 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
