Our Biocompatible, MicroCross is used to effectively join 360um capillary tubing together. It is specifically designed with a 0.006″ thruhole that delivers a low swept volume. It is made from inert PEEK, which is ideal for chemical resistance. It includes (4) F-152 and (4) P-416BLK Fittings. Brochure

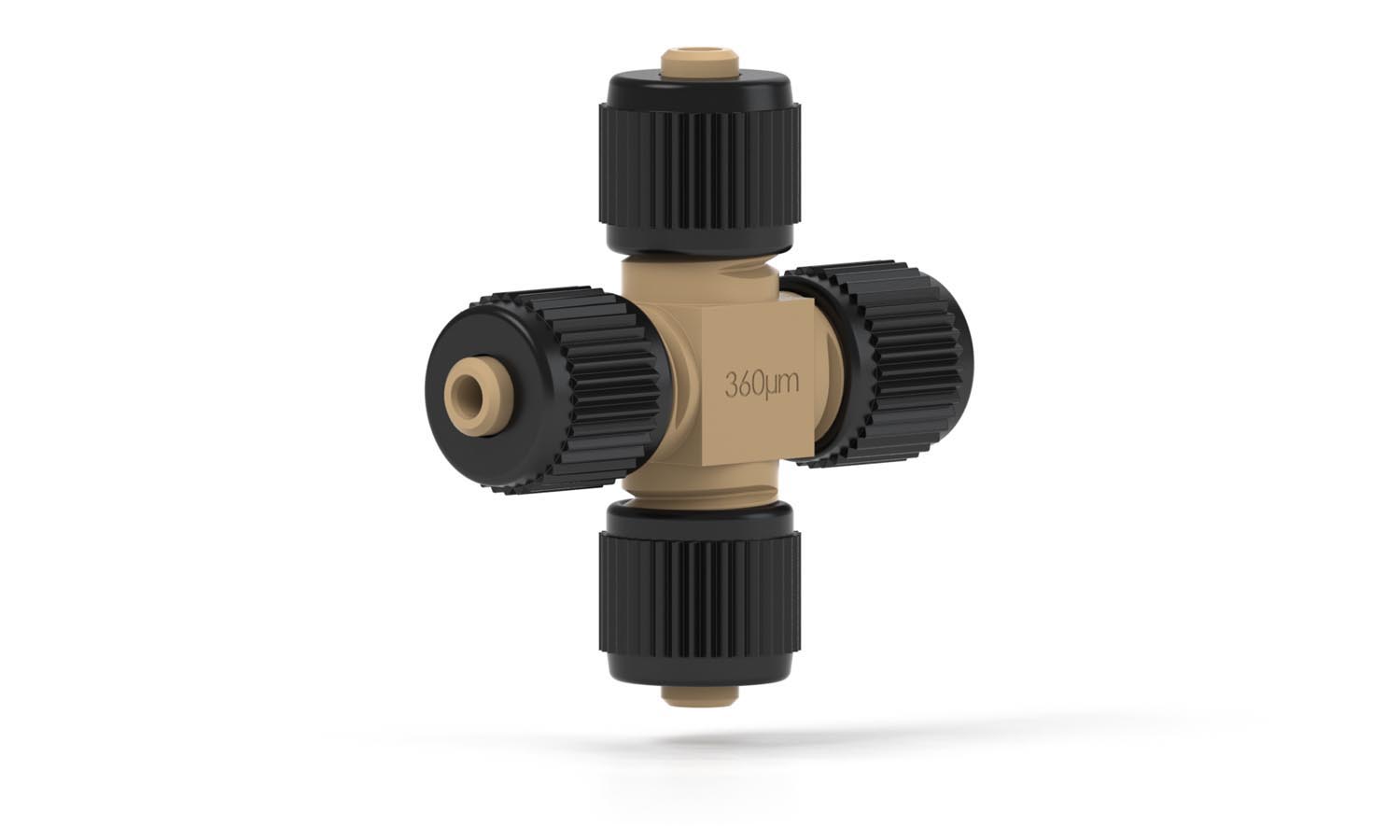

P-889, MicroCross PEEK 360µm w/Fittings
Additional information
| For Tubing OD (µm) | 360 |
|---|---|
| Material | PEEK |
| Pressure Rating Max (bar) | 345 |
| Pressure Rating Max (psi) | 5000 |
| Swept Volume (nL) | 38 |
| Thread Port Configuration Coned | 5/16-24 |
| Thru hole (in) | 0.006 |
| Thru hole (mm) | 0.15 |
