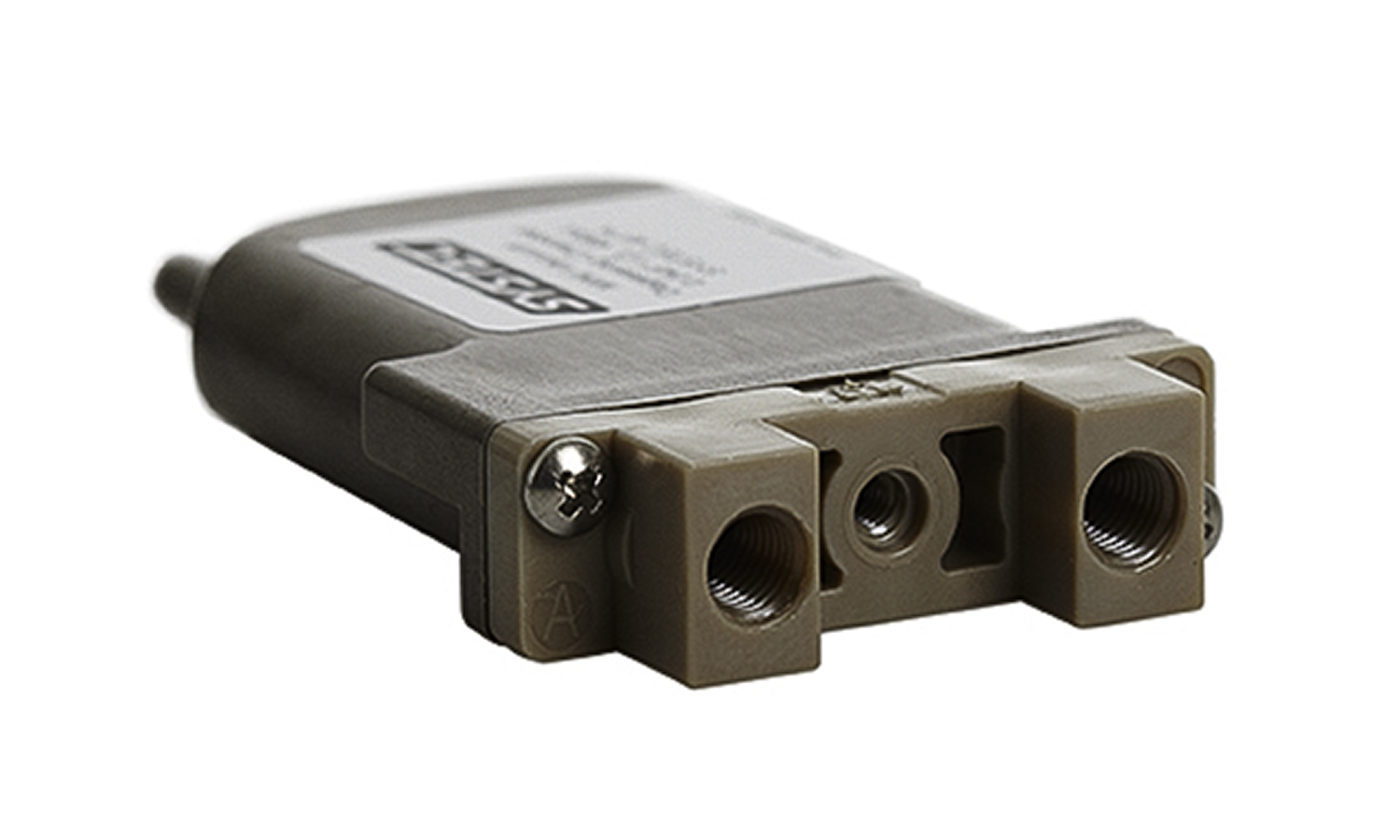

Our MINI Degassing Chamber is the ideal solution to keep bubbles out of fluidic systems and liquid chromatography pumps and ensure a stable baseline. Systec(R) AF is compatible with a wide range of typical organic solvents used in HPLC and offers a chemically inert flow path. IDEX SKU: 9000-1000
| Chemical Compatibility | See Solvent Compatibility Chart |
|---|---|
| Height (in) | 0.5 |
| Length (in) | 2.48 |
| Liquid Connections | 1_4-28 UNF |
| Max Flow Rate (mL/min) | 10 |
| Membrane Type | Systec AF |
| Recommended Flow Rate (ml/min) | 0.4 |
| Tubing ID (in) | 0.045 |
| Tubing ID (mm) | 1.143 |
| Vacuum Connection | Barb connector for 1/8â ID elastomeric Tubing |
| Wetted Materials | Systec AF, PEEK and Glass-filled PTFE |
| Width (in) | 1.75 |
