Our PEEK Low Pressure Tee Assembly is strong and durable handling a pressure rating 1000 psi (69 bar). It has excellent chemical resistance to commonly used solvents. Our assembly comes equipped with convenient mounting holes. This assembly includes (3) P-235 Nuts. Brochure

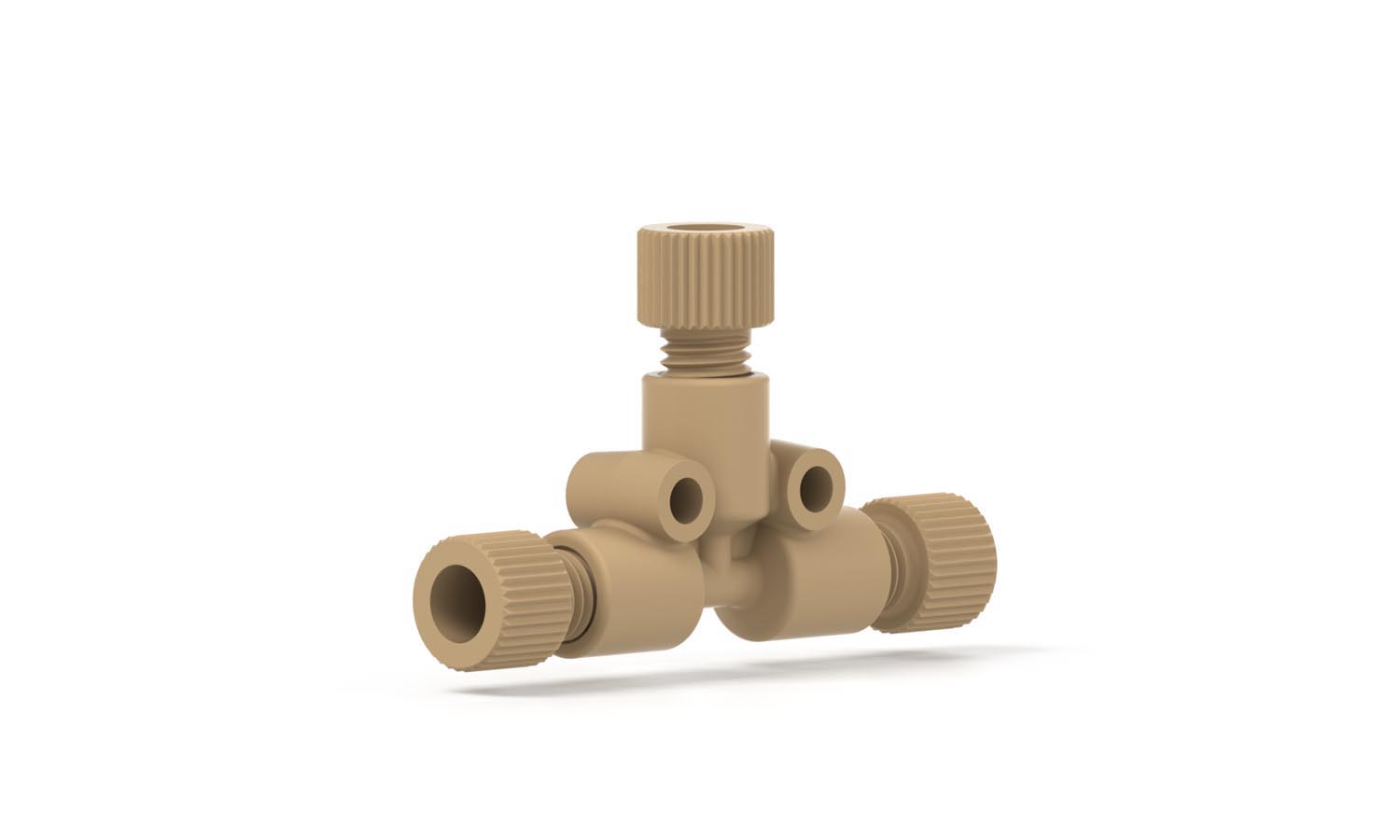

P-712, PEEK Low Pressure Tee Assembly 1/16″ PEEK .020 thru hole
Additional information
| For Tubing OD (in) | 1/16 |
|---|---|
| Material | PEEK |
| Pressure Rating Max (bar) | 69 |
| Pressure Rating Max (psi) | 1000 |
| Swept Volume (µL) | 2.9 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
| Thru hole (in) | 0.020 |
| Thru hole (mm) | 0.50 |
