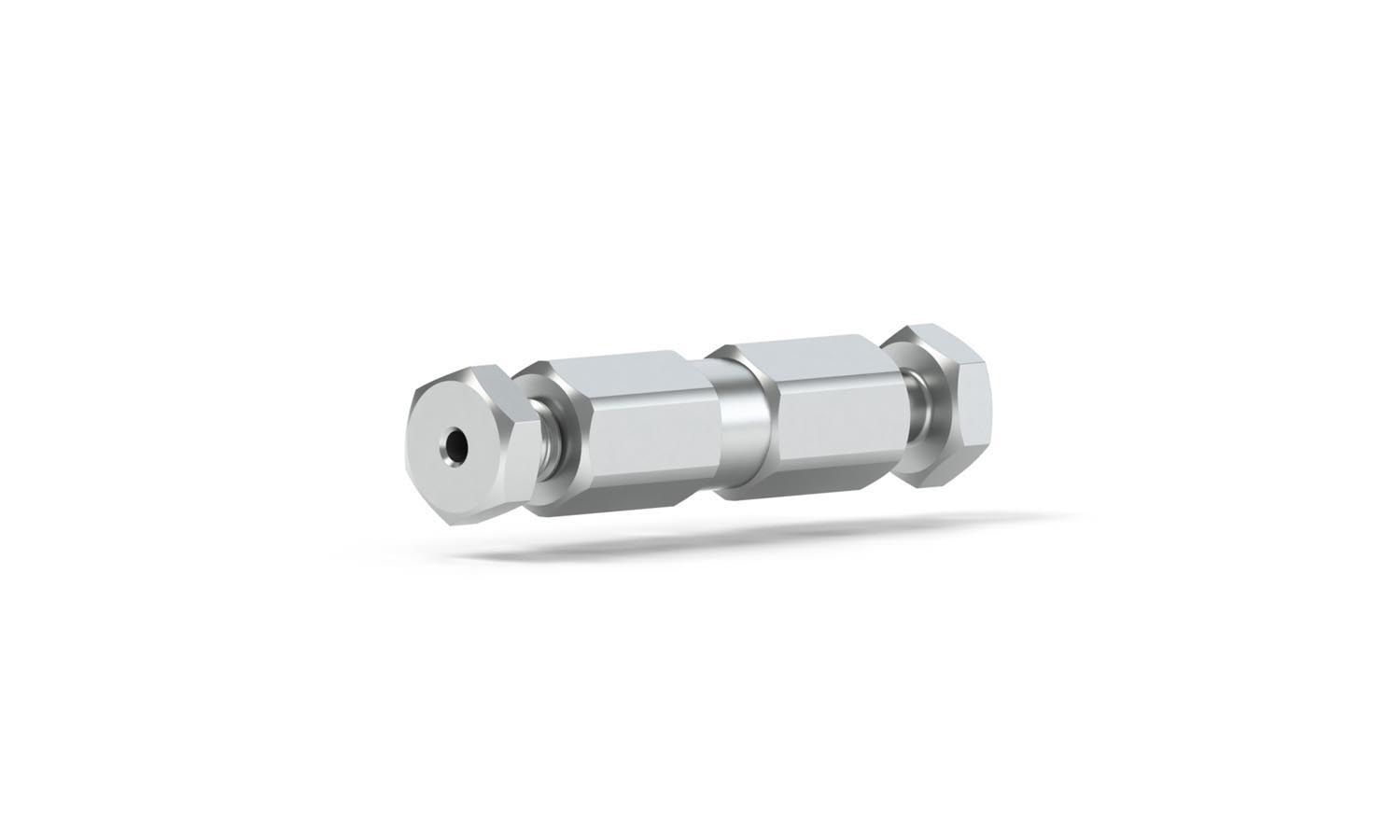

Our ZDV Union Assembly is Waters Compatible and precision machined from 316 stainless steel. Our mechanically strong and reliable union offers zero dead volume (ZDV) allowing tubing to join without interrupting the fluidic path. It is designed for 1/16″OD tubing and has a 10-32 Coned thread port configuration. It comes with (2) U-410/U-401 stainless steel fittings.
U-412, Union Assembly ZDV Waters® Type
Additional information
| Material | Stainless Steel |
|---|---|
| Pressure Rating Max (bar) | 1380 |
| Pressure Rating Max (psi) | 20000 |
| Thread Port Configuration Coned | 10-32 |
| Thru hole (in) | 0.020 |
| Thru hole (mm) | 0.50 |
