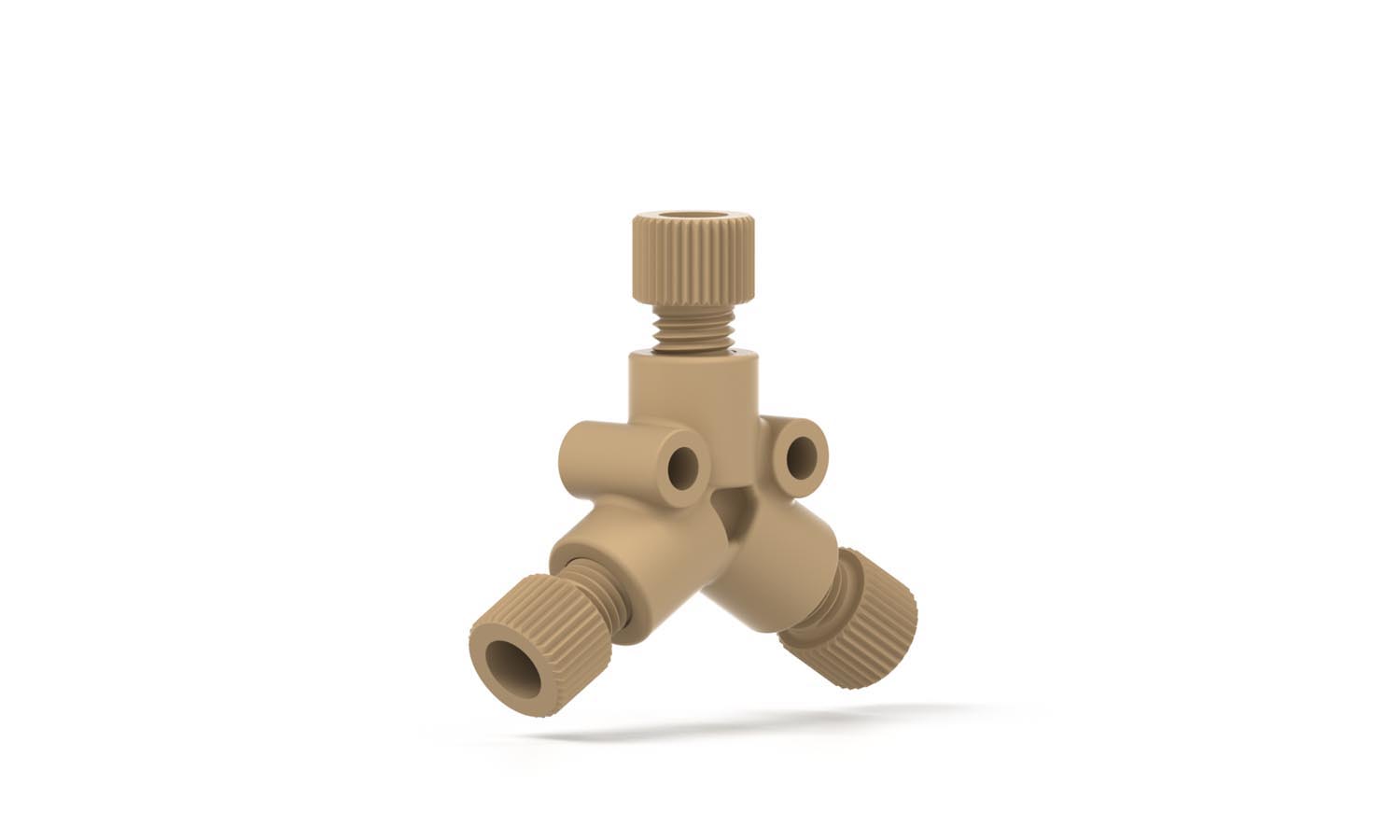

Our PEEK Y Connector Assembly can split a stream or join two streams together similar to a “T” design. Unlike a “T” the geometry of the “Y” design reduces turbulence and improves analytical results. It is for 1/8″ OD tubing. This assembly comes with (3)OD x P-335 Flangeless Fittings. Brochure
P-513, Y Assembly PEEK 1/4-28 .040in
Additional information
| For Tubing OD (in) | 1/8 |
|---|---|
| Material | PEEK |
| Pressure Rating Max (bar) | 34 |
| Pressure Rating Max (psi) | 500 |
| Swept Volume (µL) | 6 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
| Thru hole (in) | 0.040 |
| Thru hole (mm) | 1.00 |
