Our PEEK Y Connector Assembly can split a stream or join two streams together similar to a “T” design. Unlike a “T” the geometry of the “Y” design reduces turbulence and improves analytical results. It is for 1/16″OD tubing. This assembly comes with (3)OD x P-132 Flangeless Fittings. Brochure

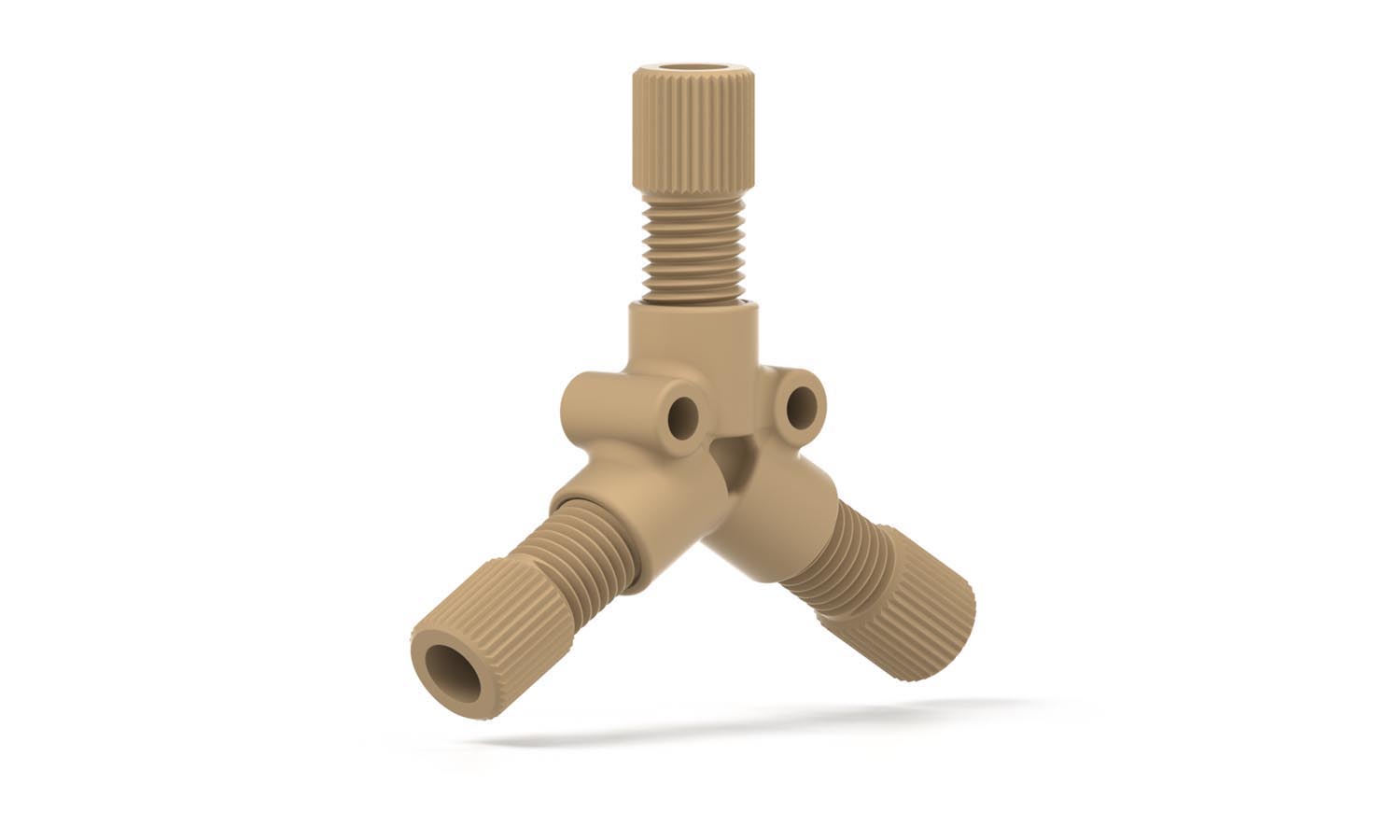

P-515, Y Assembly PEEK 5/16-24 .125in
Additional information
| For Tubing OD (in) | 3/16 |
|---|---|
| Material | PEEK |
| Pressure Rating Max (bar) | 34 |
| Pressure Rating Max (psi) | 500 |
| Swept Volume (µL) | 47.7 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
| Thru hole (in) | 0.125 |
| Thru hole (mm) | 3.20 |
