Description
Our RefractoMax RI Detector provides accurate Refractive index detection with sharp peeks and consistent performance. It is available in three flow rate options.

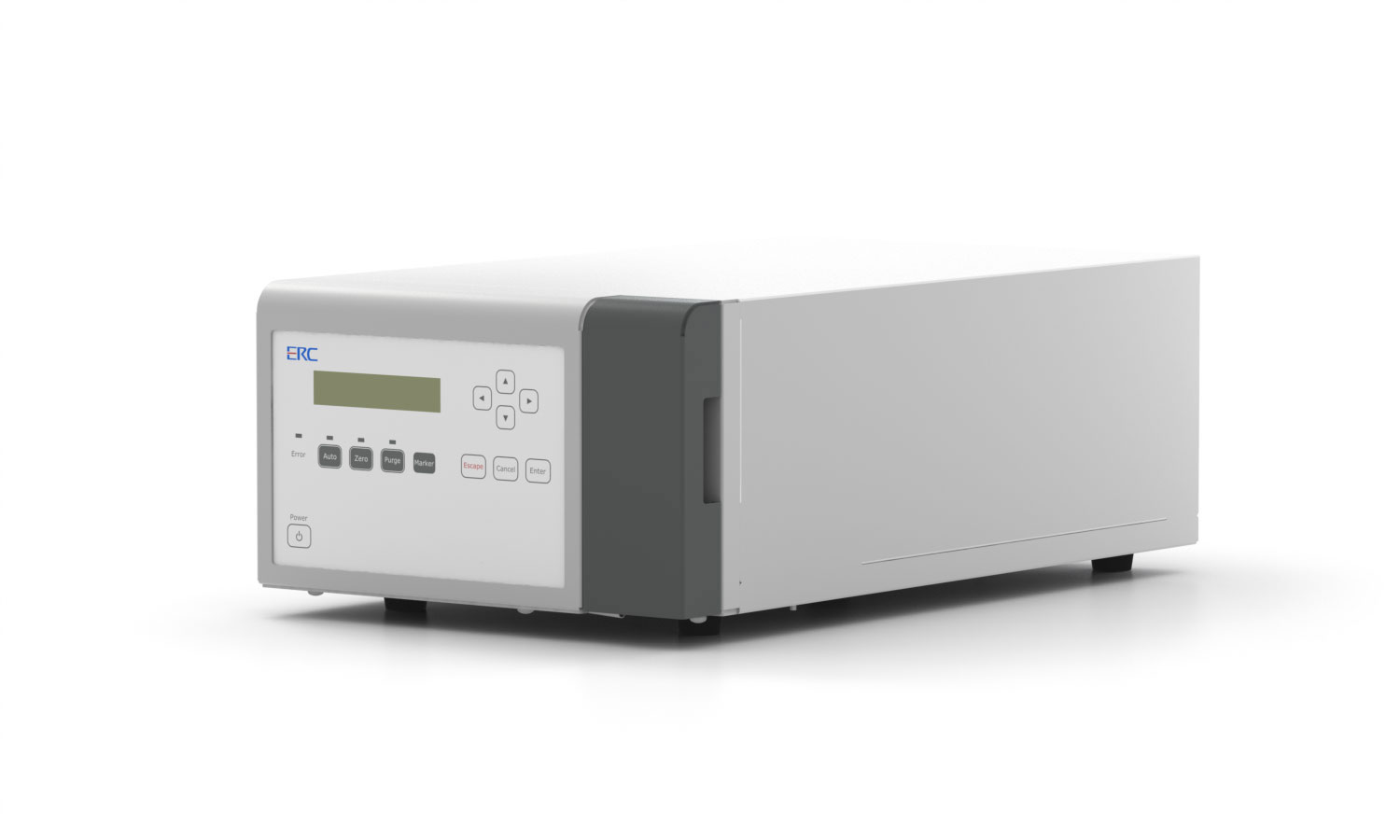

IDEX RefractoMax 524 RI Detector Micro
Additional information
| Back Pressure (kpa) | 50 |
|---|---|
| Flow Cell Volume (uL) | 2.5 |
| Height (in) | 5.9 |
| Length (in) | 17.8 |
| Linearity Range uRIU | 600 |
| Measuring range (uRIU) | 0.25-512 |
| Recommended Flow Rate (ml/min) | 0.1-1 |
| Refractive Index Range | 1.0-1.76 |
| Response (Seconds) | 0.1, 0.25, 0.5, 1, 1.5, 2, 3, 6 |
| Sensitivity (Integrator Output) | DC 0 to 1 V (2 mV1/4RIU, 8 mV1/4RIU) |
| Temperature Control Cº | 30-55 |
| Wetted Materials | SUS316, Teflon, Quartz glass |
| Width (in) | 9.5 |
