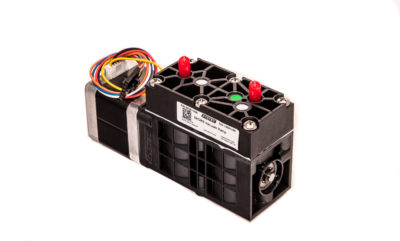

The Dual Stage Pump (DST) is a vacuum control system for use with IDEX degassing chambers and PCB control systems. The prep versions are designed to handle high vapor loads from high flow rate chambers or fluids with low vapor pressure that will cause increased solvent pervaporation through the membrane. The pump is also available in bottom mount versions.
| Air Flow (no vacuum) | 650 SCCM @ 400 RPM, 100 SCCM @ 60 RPM |
|---|---|
| Expected Lifetime | More than 5 years (continuous run @ 60 RPM) |
| Motor winding resistance | 4.4 ohm, Motor max rated current – 1A |
| Pump Head Continuous Purge Air Flow Rate | ~30 SCCM |
| Pump-down Time | Less than 1 minute (with 4 MINI degassing channels, 50 cc total internal volume) |
| Step Angle | 1.8° |
| Stepper motor driver | unipolar or bipolar |
| Typical Vacuum Performance | 80 mmHg @ (80±20) RPM (3 SCCM air flow, closed loop) |
| Unipolar driver specs | 16 microsteps/step, 680 mA peak current – 15 to 24 VDC, power consumption – less than 5 W with temperature rise <25°C, 16 microsteps/step, 680 mA peak current – 15 to 24 VDC, power consumption – less than 5 W with temperature rise less than25°C |
| Wetted Materials | 303 Stainless Steel, Polypropylene, PTFE, EPDM Rubber |
