DEGASi® stand-alone degassers

Inline degassing for every application

DEGASi® stand-alone inline degasser overview Biocompatible flow path GPC-compliant flow path High flow rates DEGASi® Nano DEGASi® GPC DEGASi® GPC Semi-Prep DEGASi® Micro DEGASi® BioCompact DEGASi® BioCompact DEGASi® Classic DEGASi® Semi-Prep DEGASi® Prep+ DEGASi® Prep DEGASi® Prep+ DEGASi® High Flow 1000

The DEGASi® family of stand-alone inline degassers ensure efficient removal of dissolved gases in flowing liquids under a wide variety of conditions. Regardless of whether you require a flow path with full biocompatibility, or durable to withstand the most aggressive organic solvents, there is always a DEGASi® model that suits your needs for an efficient and robust degasification process. With different models designed for flow rates from a few microliters per minute up to one litre per minute, the DEGASi® family is by far the most complete product range of degassers in the world.

Contact Biotech Fluidics for technical support and expert guidance in the selection of degasser model for your specific conditions and requirements.

Photo containing several models of stand-alone inline degassers in the DEGASi® family from Biotech Fluidics

Core degasser designs

The DEGASi® family of stand-alone inline degassers are available in a couple of core designs with different capabilities and features. The core designs are then configured with degassing channels for different solvents and flow rate ranges. All degassers from Biotech Fluidics rely on long-lifetime vacuum pump technology with closed-loop vacuum control plus advanced leak and error detection functions, to provide ultra-stable performance in every degassing situation.

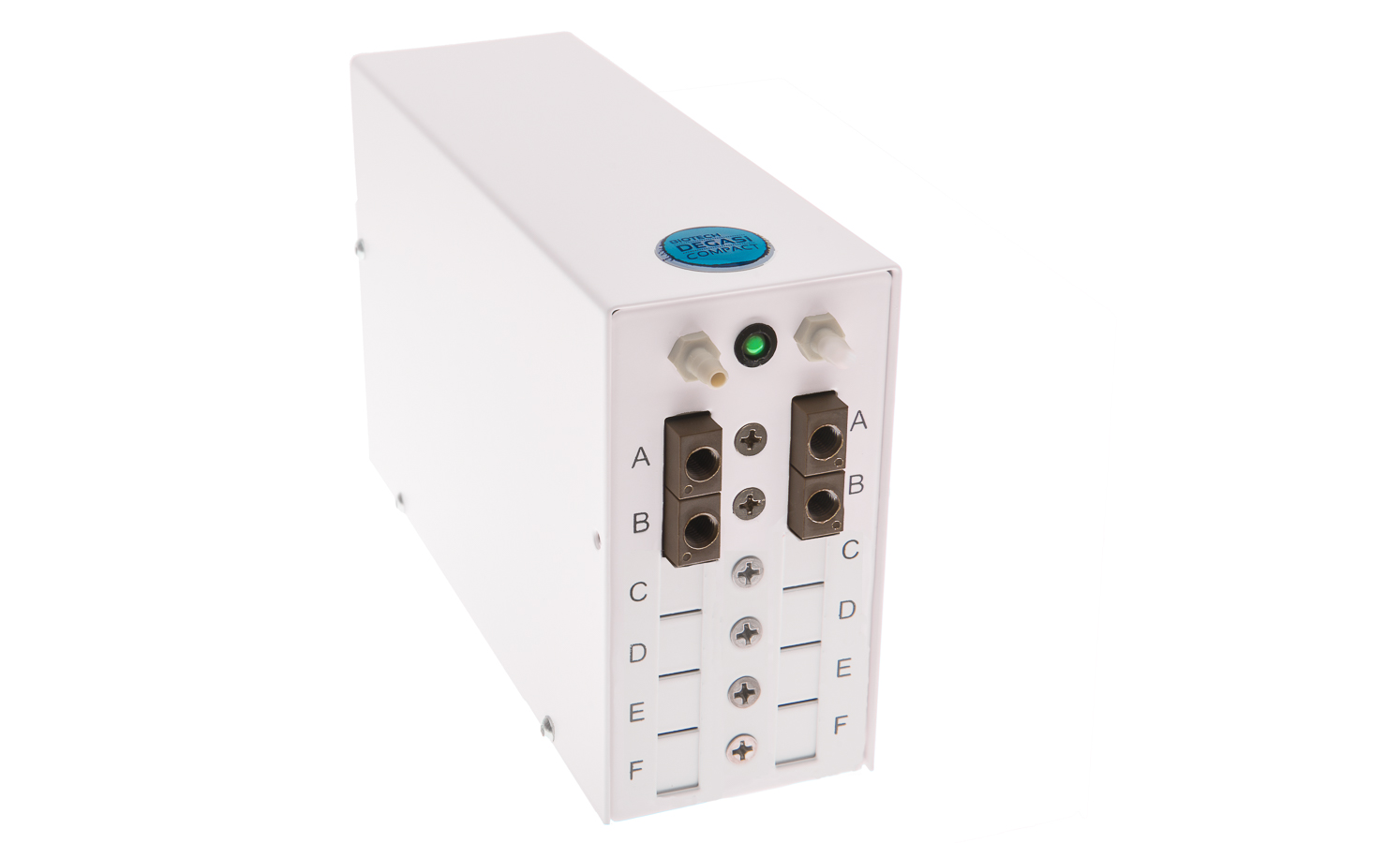

DEGASi® Plus series
The new global standard for slim and silent stand-alone vacuum degassers with flexible design. Can be configured with 1-6 channels.

DEGASi® Integration series
Unique output allows your system control software to continuously monitor the degasser vacuum level and log it with your other process parameters. Can be configured with 1-5 channels.

DEGASi® Preparative series
Outstandingly powerful models to accomplish degassing of aqueous-organic liquids at high liquid flow rates. Can be configured with 1, 2, or 4 channels depending on model.

DEGASi® BioCompact
The smallest stand-alone inline vacuum degasser with a fixed metal-free flow path. Can be configured with 1-6 channels.

Channels for different solvents and flow rate ranges

The DEGASi® core designs are configured with one or several degassing channels for a particular solvent type and flow rate range, thereby creating complete degassers of various models for specific requirements. For easy navigation, these channels have been grouped into four categories, differentiated by their flow rate ranges.

For typical analytical systems

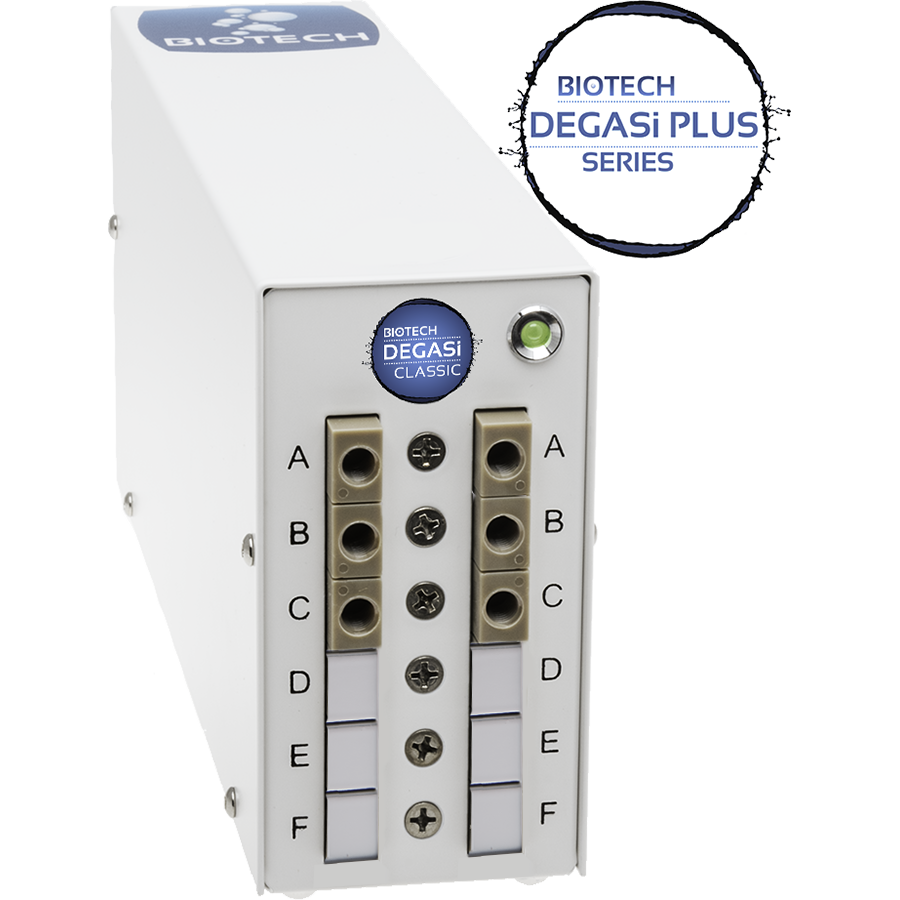

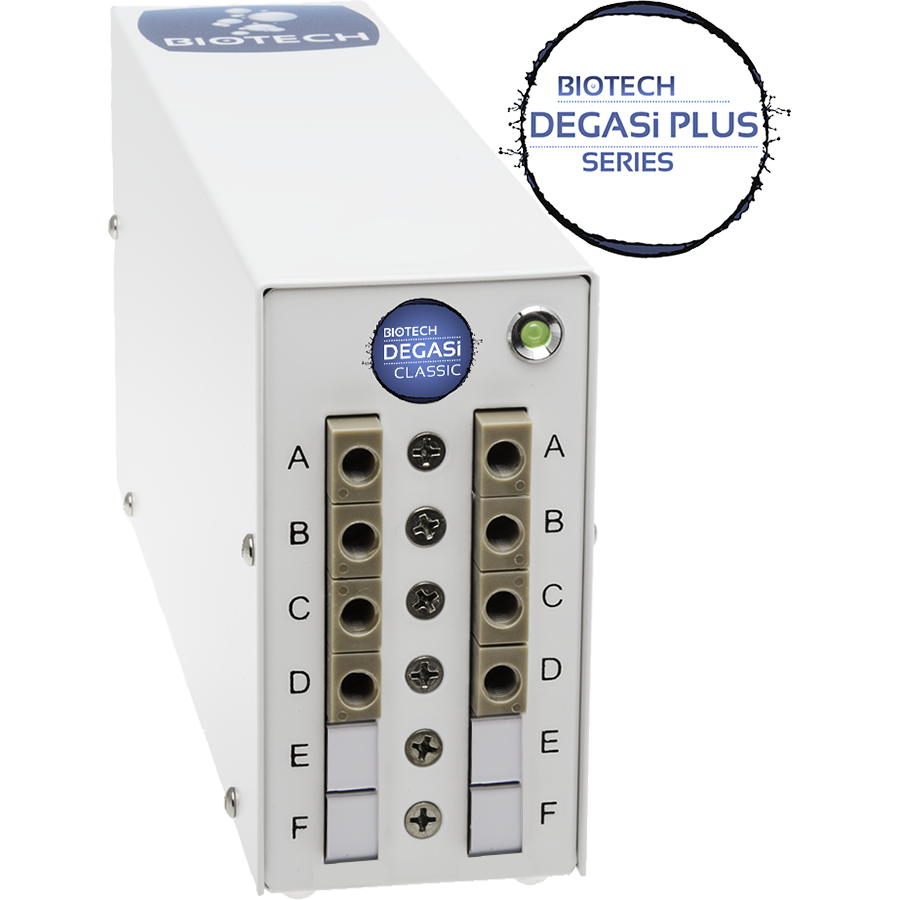

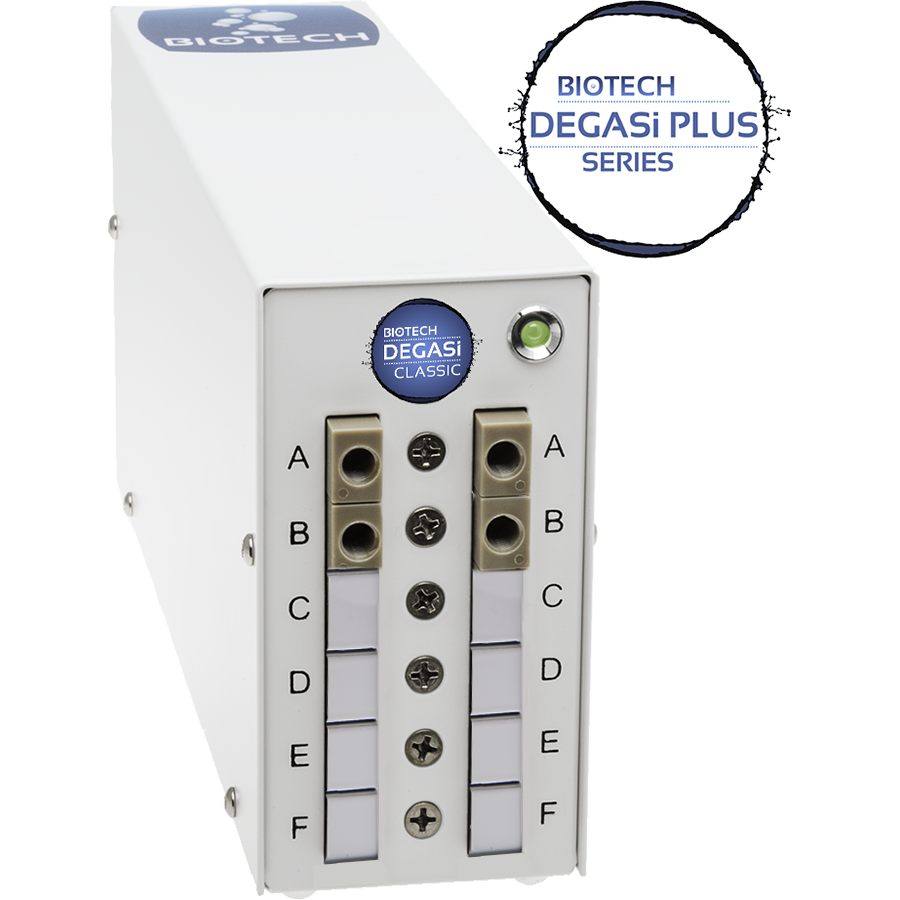

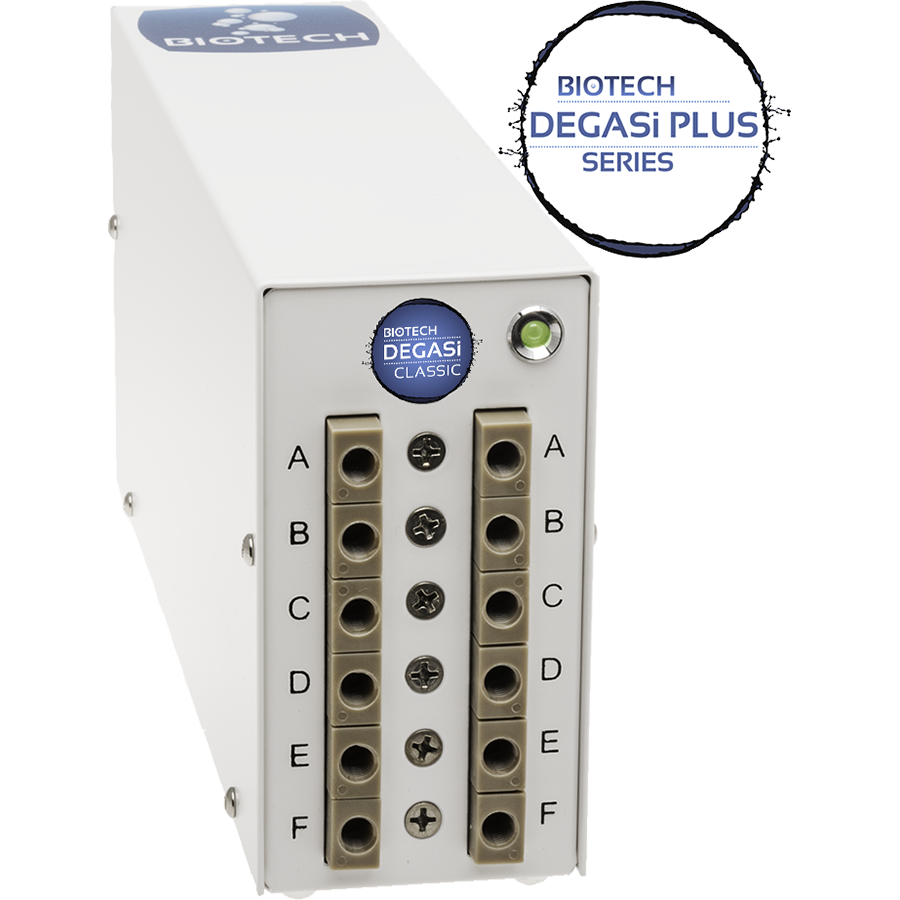

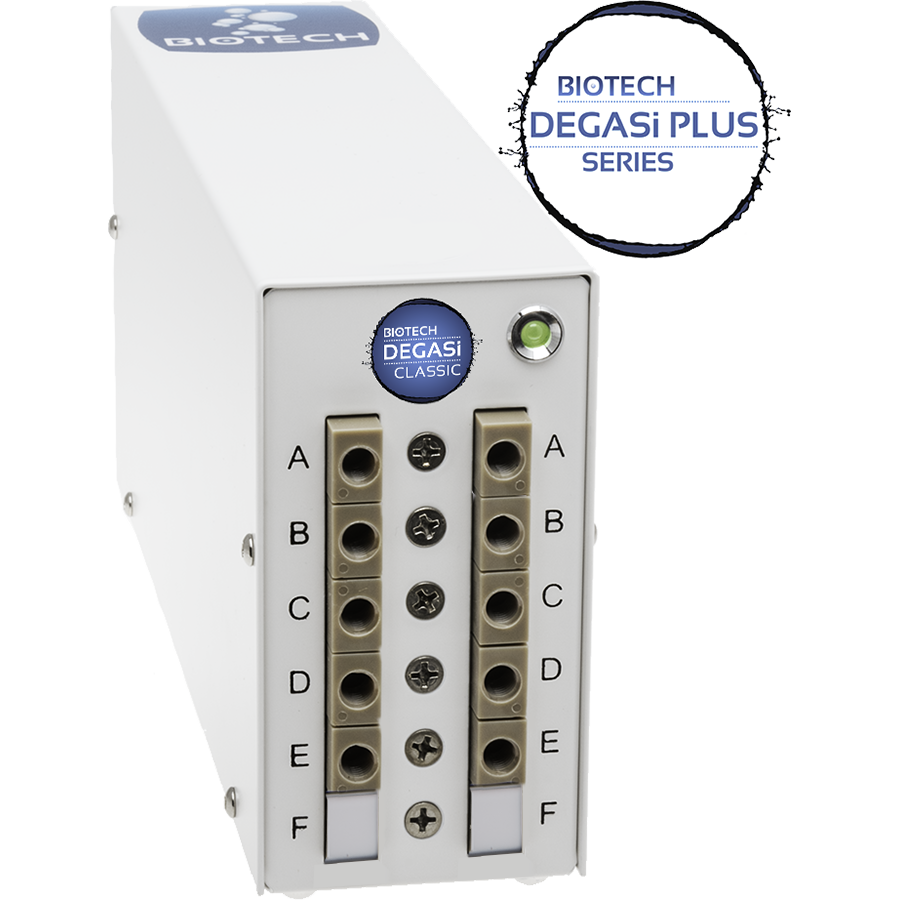

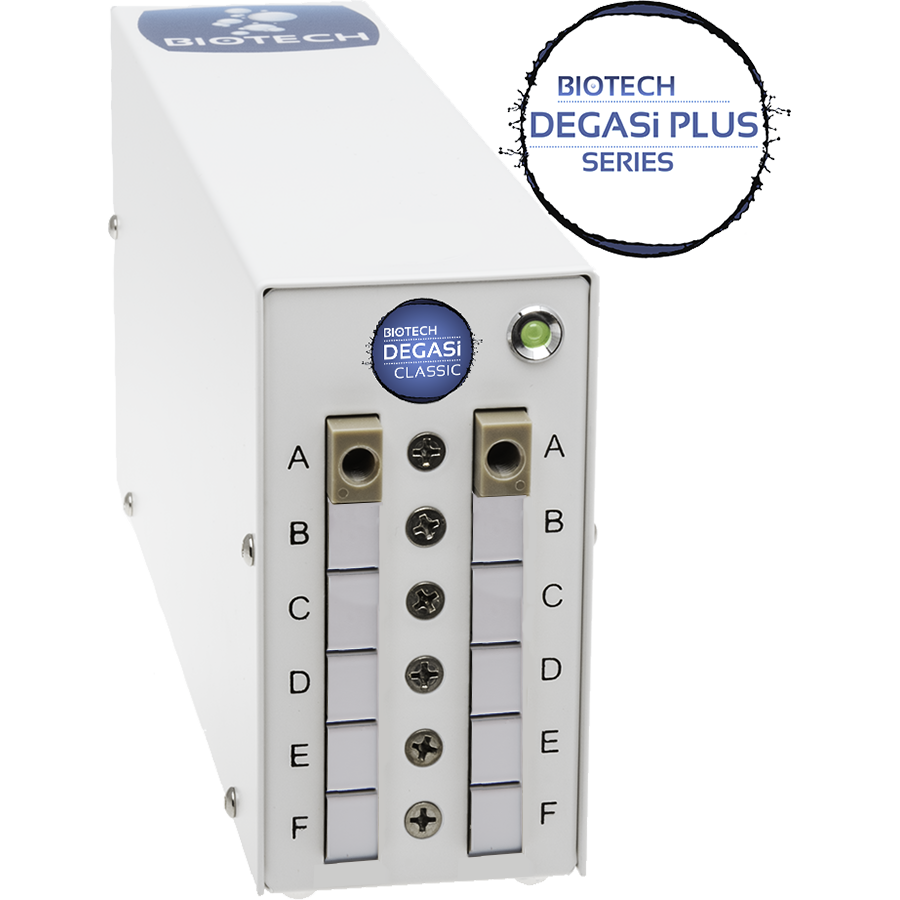

DEGASi® Classic
The first choice for most applications in analytical instrumentation and liquid chromatography, including typical reversed phase and ion chromatography applications with flow rates up to 3 mL/min. Biocompatible flow path of 480 μL. Not for use with hexane. Available in the DEGASi® Plus and DEGASi® Integration series.

DEGASi® GPC
Designed for straight phase chromatography applications with flow rates up to 3 mL/min. With the stainless-steel stented flow path of 480 μL this degasser is intended for use with all common organic solvents including alkanes like hexane. Available in the DEGASi® Plus and DEGASi® Integration series.

DEGASi® HFIP
Especially designed for hexafluoroisopropanol (HFIP) often used in size-exclusion SEC and GPC applications. Equipped with a unique SS stented flow path of 480 μL for flow rates up to 3 mL/min. Also suitable for alkanes including hexane. Only available in the DEGASi® Integration series.

For systems with higher flow rates

DEGASi® Semi-Prep
Designed for reversed phase and ion chromatography applications at flow rates in the range 3-6 mL/min. Biocompatible flow path of 925 μL. Not for use with hexane. Available in the DEGASi® Plus and DEGASi® Integration series.

DEGASi® GPC Semi-Prep
Designed for straight phase chromatography applications with flow rates 3-6 mL/min. With the stainless-steel stented flow path of 925 μL this degasser is intended for use with all common organic solvents including alkanes like hexane. Available in the DEGASi® Plus and DEGASi® Integration series.

DEGASi® HFIP Semi-Prep
Especially designed for hexafluoroisopropanol (HFIP) often used in size-exclusion SEC and GPC applications. Equipped with a unique SS stented flow path of 925 μL for flow rates 3-6 mL/min. Also suitable for alkanes including hexane. Only available in the DEGASi® Integration series.

For low volume degassing

DEGASi® Micro
Optimised for low flow rates of aqueous and organic liquids up to 0.5 mL/min. Biocompatible flow path of 100 μL. Not for use with hexane. Available in the DEGASi® Plus and DEGASi® Integration series.

DEGASi® Nano
Optimised for nano flow rates of aqueous and organic liquids up to 0.1 mL/min. Biocompatible flow path of 25 μL. Not for use with hexane. Available in the DEGASi® Plus and DEGASi® Integration series.

DEGASi® UltraNano
Optimised for ultra-low flow rates of aqueous and organic liquids up to 25 μL/min. Biocompatible flow path of only 6 μL. Not for use with hexane. Available in the DEGASi® Plus and DEGASi® Integration series.

For degassing of the highest flow rates

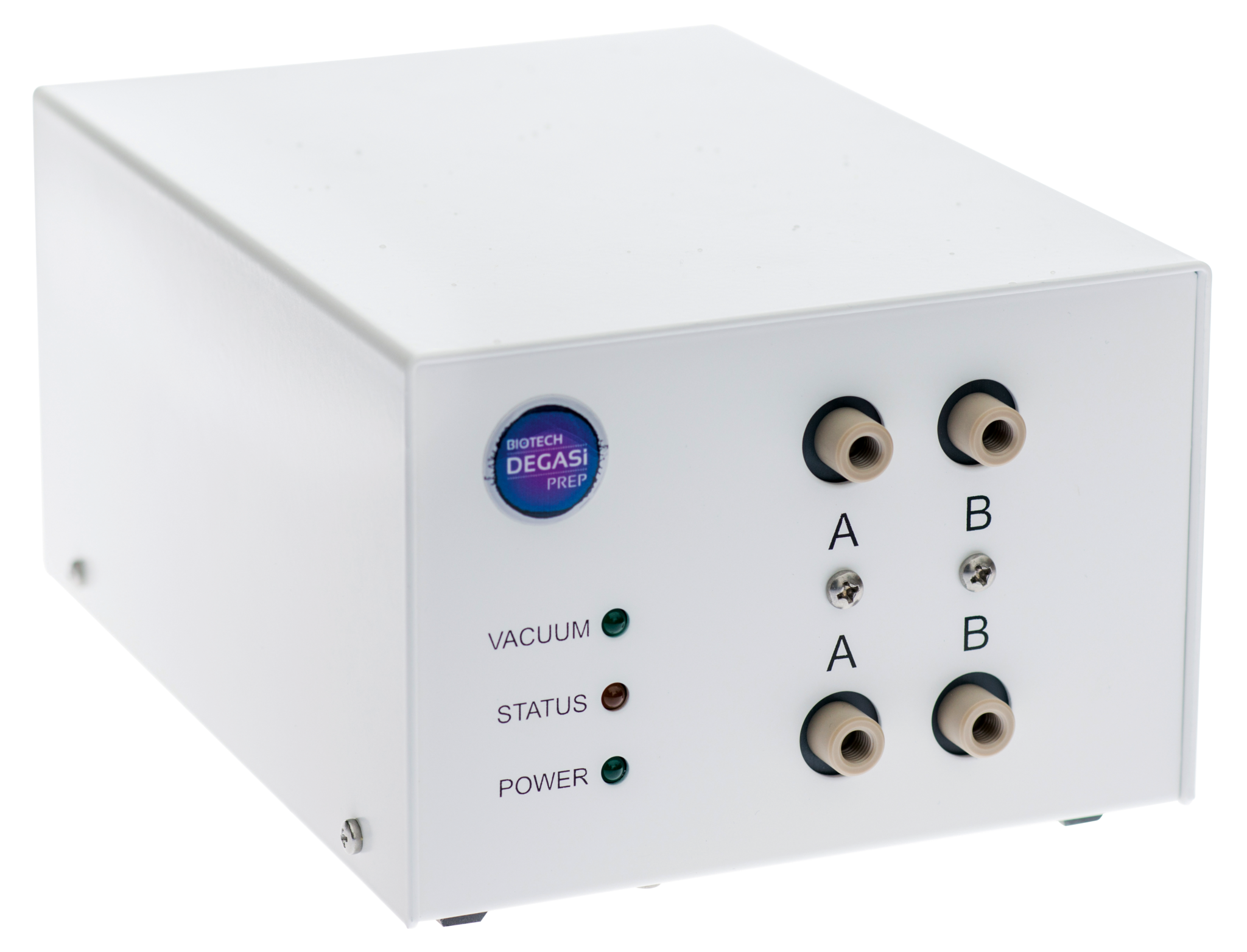

DEGASi® Prep
Powerful degasser for aqueous and organic liquids. Suitable for flow rates up to 15 mL/min/channel with an internal volume of 5.4 mL. Suitable for use with organic solvents including hexane.

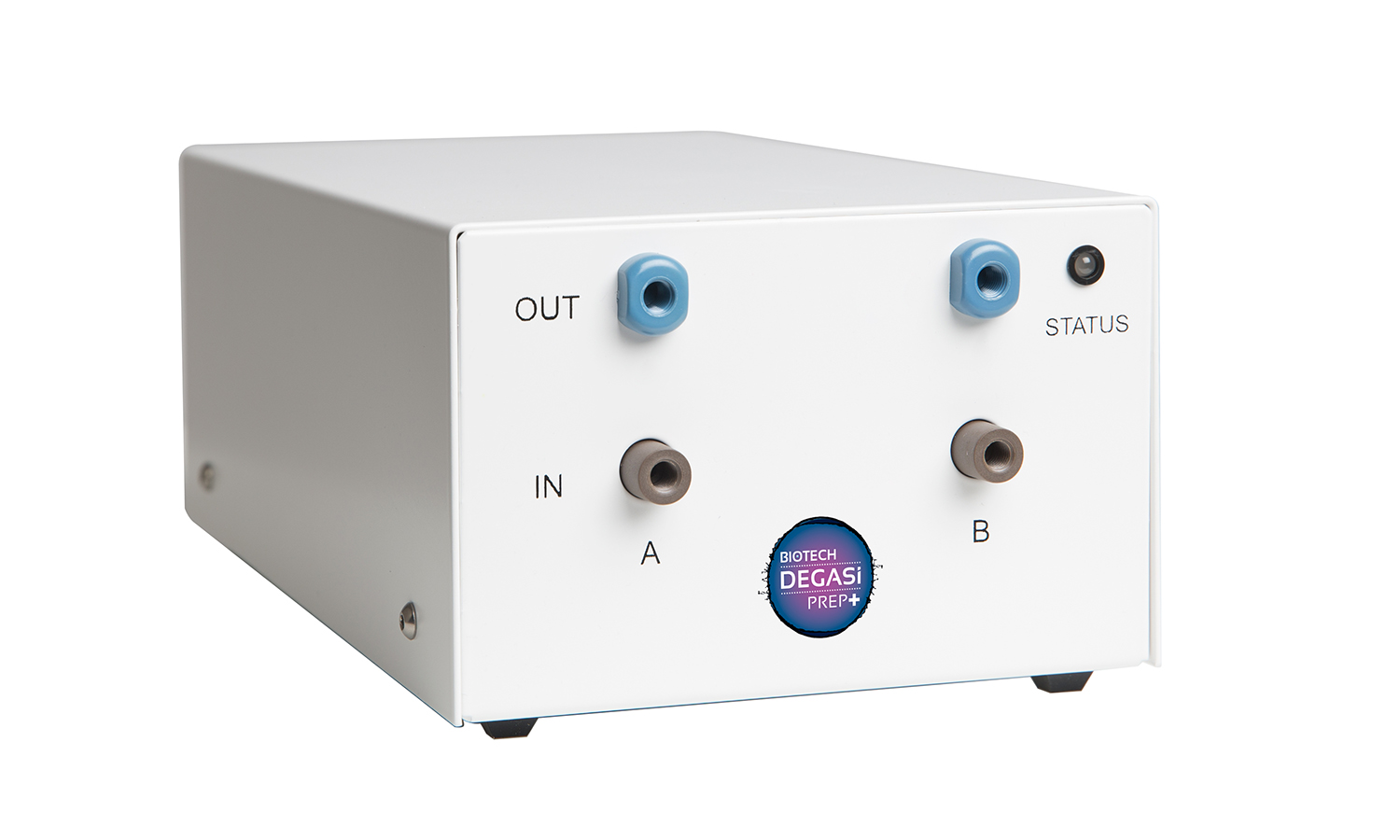

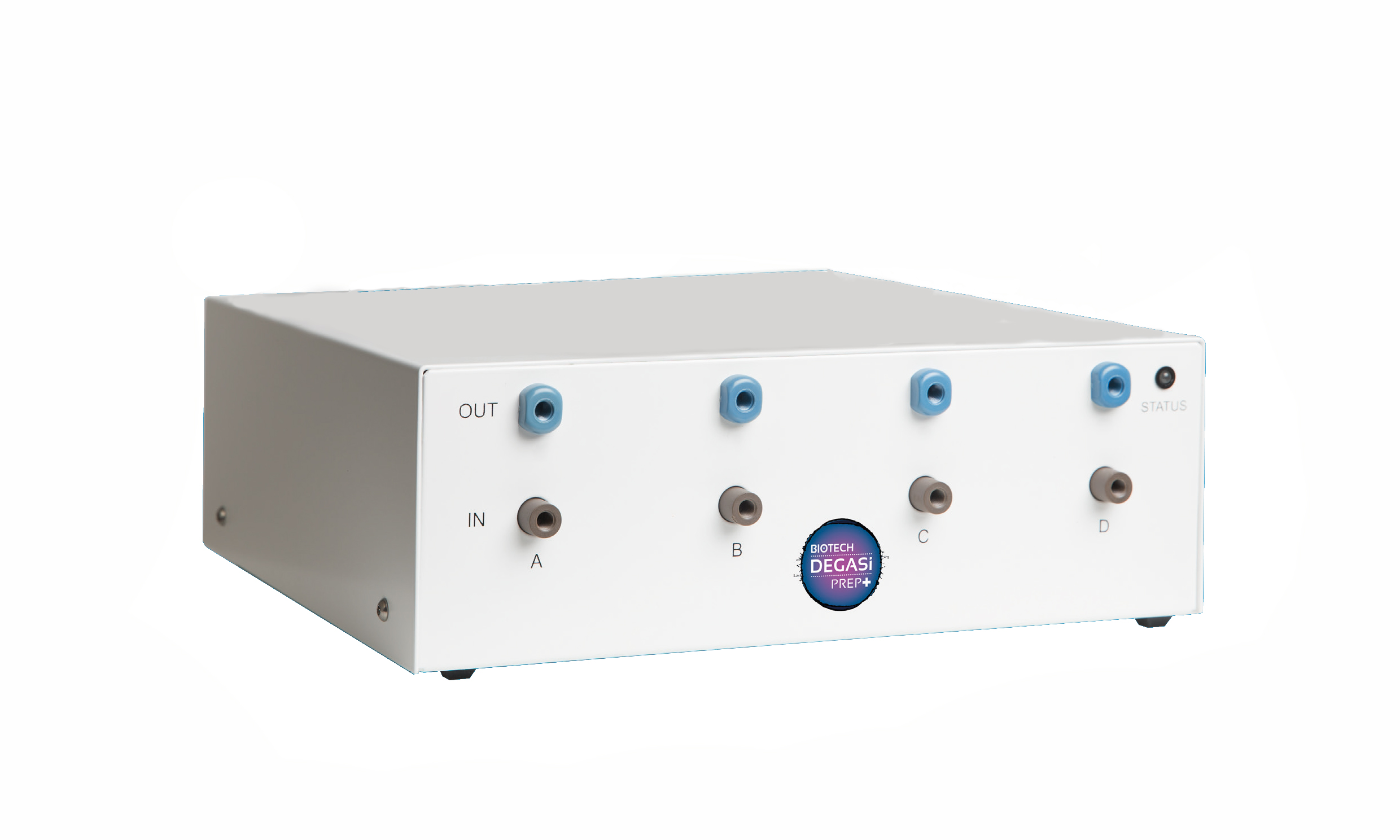

DEGASi® Prep+
Very powerful degasser for aqueous and organic liquids. Built for flow rates up to 75 mL/min/channel with an internal volume of 22 mL. Suitable for use with organic solvents including hexane.

DEGASi® Prep+ Large
The most powerful degasser for aqueous and organic liquids. Built for flow rates up to 100 mL/min/channel with an internal volume of 22 mL. Suitable for use with organic solvents including hexane. Configured for 3/16″ tubing.

DEGASi® Prep+ XLarge
The most powerful degasser for aqueous and organic liquids. Built for flow rates up to 100 mL/min/channel with an internal volume of 22 mL. Suitable for use with organic solvents including hexane. Configured for 1/4″ tubing.

DEGASi® Prep+ AUX
Degasser with identical properties to the other DEGASi® Prep+ units, but comes equipped with an additional channel from the DEGASi® Plus series for degassing of a parallel auxiliary liquid flow in the analytical range.

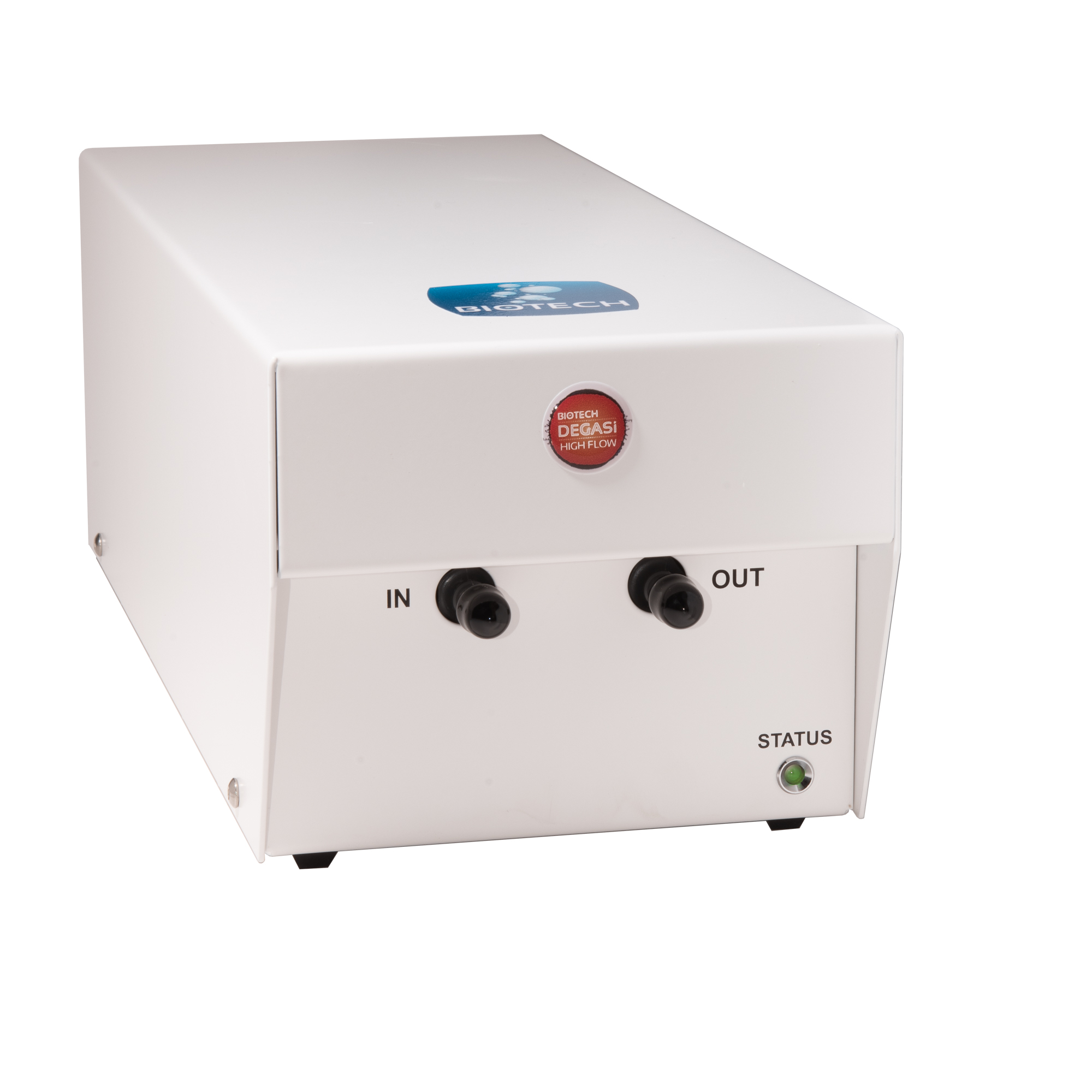

DEGASi® High Flow 1000
The most powerful degasser for water and aqueous buffers up to 1000 mL/min. This degasser is based on a silicone membrane and should not be used with more than 5% alcohol. The internal volume is 200 mL.
